Description

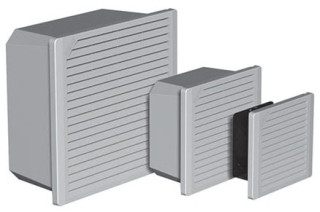

TFP10 Side-Mount Filter Fan Type 1, 115V 215CFM, Lt Gray, Composite

Cooling Fan Package includes fan, air filter, composite air plenum, finger guard and grille
Exhaust Package includes air filter, filter retainer with integral finger guard and grille
EMC Upgrade Kit includes a grille standoff collar and a special EMC shielding grille
Reliable cooling for enclosures with limited space requiring simple filtered airflow for basic cooling
24 VDC, 115 VAC and 230 VAC options available
Washable foam (Type 1) or disposable (Type 12) filter in fan
Dynamically-balanced fan impellers molded from polycarbonate material
4-inch fan is thermally protected and uses permanently-lubricated ball bearings
6- and 10-inch fans have ball bearing construction and split-capacitor motors that are thermally protected to avoid premature failure
Fans have lead wires for power connection with ends stripped 1/2 in. (12 mm)
All mounting hardware and installation instructions are furnished
Free airflow from 45 CFM (76 mm cu/hr.) to 215 CFM (365 mm cu/hr.)
Maximum operating temperature 158 F / 70 C
Engineered for 50,000 hours of continuous operation without lubrication or service (a monthly maintenance schedule is recommended to ensure optimal cooling performance)
