Product Overview

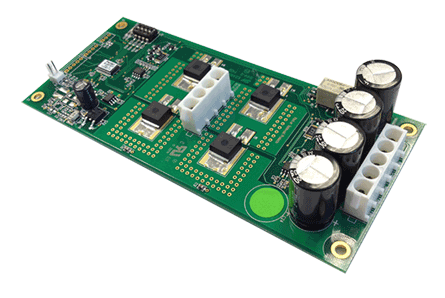

Thermoelectric Temperature Controller, 3.19x6.5x.05, 48VDC, Printed Circuit Board

Provides PWM (Pulse-Width-Modulation) regulation of cooling and heating output for TEC units
Automatically switches between cooling and heating
4 cooling temperature set points range from 22.5 C to 35 C (35 C Factory Setting)
3 heating temperature set points range from -5 C to 15 C (15 C Factory Setting)
Heating function can be easily disabled if desired
On-board LEDS indicate low temp, high temp alarm, and overall system status
Dry contact relay output provides for external alarm indication

PRODUCT ATTRIBUTES

Height: 3.19 in / 81 mm
Width: 6.5 in / 165 mm
Depth: 0.05 in / 1 mm
Weight: 1.6 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

Thermoelectric Temperature Controller printed circuit board provides PWM (Pulse-Width-Modulation) regulation of cooling and heating output for TEC units.

BULLETIN NUMBER

MCLT

Other Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.

Product Overview
Other Information

Thermoelectric Temperature Controller, 3.19x6.5x.05, 48VDC, Printed Circuit Board

Provides PWM (Pulse-Width-Modulation) regulation of cooling and heating output for TEC units
Automatically switches between cooling and heating
4 cooling temperature set points range from 22.5 C to 35 C (35 C Factory Setting)
3 heating temperature set points range from -5 C to 15 C (15 C Factory Setting)
Heating function can be easily disabled if desired
On-board LEDS indicate low temp, high temp alarm, and overall system status
Dry contact relay output provides for external alarm indication

PRODUCT ATTRIBUTES

Height: 3.19 in / 81 mm
Width: 6.5 in / 165 mm
Depth: 0.05 in / 1 mm
Weight: 1.6 lb

DRAWINGS AND DOCUMENT DOWNLOADS

3D Step

TEC_CONTROLLER_CAD_FILES 3D STEP CAD

Approval Agency Certificate

CERT-00282

DECLARATION OF CONFORMITY

DECLARATION OF COMPLIANCE

DECLARATION OF CONFORMITY DECLARATION OF CONFORMITY

Data Sheet

THERMOELECTRIC COOLERS INDOOR/OUTDOOR SPEC SHEET

Installation Manual / Instruction Sheet

THERMOELECTRIC TEMPERATURE CONTROLLER INSTRUCTION MANUAL

ADDITIONAL PRODUCT DETAILS

Thermoelectric Temperature Controller printed circuit board provides PWM (Pulse-Width-Modulation) regulation of cooling and heating output for TEC units.

BULLETIN NUMBER

MCLT
