Description

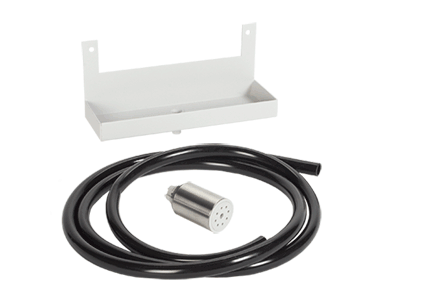

Thermoelectric Condensate Manager TE16, .75x7.44x2.50, Lt Gray, Steel
- Drains condensation to bottom of enclosure via vent drain (vent drain included with package)
- Utilizes existing mounting holes and fasteners of thermoelectric cooler that requires no additional mounting
- Maintains the integrity of Type 4 or Type 4X enclosure
- Items ending in SS4 are stainless steel
- Items ending in NM are non-metallic
PRODUCT ATTRIBUTES
- Height: 0.75 in / 19 mm
- Width: 7.44 in / 189 mm
- Depth: 2.5 in / 64 mm
- Material: Mild Steel
- Finish: Powder Coated
- Color: Light Gray
- Color Code: RAL 7035
- Thickness: 16 ga / 1.52 mm
- Weight: 1.5 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
Thermoelectric Condensate Manager drains condensation to bottom of enclosure via vent drain. Includes all required hardware and vent drain.
BULLETIN NUMBER
MDAC
INDUSTRY STANDARDS
Maintains UL/cUL Type 3R, 12, 4 and 4X rating when properly installed
