Hoffman S2MT2000 Syspend Tube

Hoffman S2MT2000 Syspend Tube

$779.00
SKU:
S2MT2000
Shipping:
Calculated at Checkout
Product Type:
Tubes
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Manufacturer Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

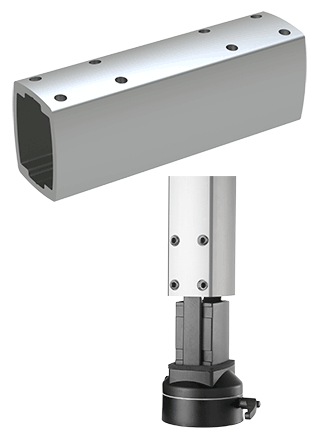

Syspend 281-Max Tube 2000mm, 3.54x2.76x78.74, Anodized, Aluminum

  • Set screws are provided with system couplings, not the tubes
  • Tubes 750 mm and longer include drilling template to assist with drilling and tapping the holes when the tube is cut to length

PRODUCT ATTRIBUTES

  • Height: 3.54 in / 90 mm
  • Width: 2.76 in / 70 mm
  • Depth: 78.74 in / 2000 mm
  • Material: Aluminum
  • Color: Unpainted
  • Finish: Anodized
  • Thickness: 0.24 in / 6 mm
  • Weight: 23 lb

DRAWINGS AND DOCUMENT DOWNLOADS

Spec Sheet / Engineering Specification

ADDITIONAL PRODUCT DETAILS

Syspend 281-Max tubes provide structural integrity and act as conduit for equipment wiring. Tubes attach to system components with 6 set screws on each end of the tube. Set screws allow for easy adjustment and leveling of the system. Set screws are provided with thread sealer providing secure connections.

BULLETIN NUMBER

CS4
