Product Overview

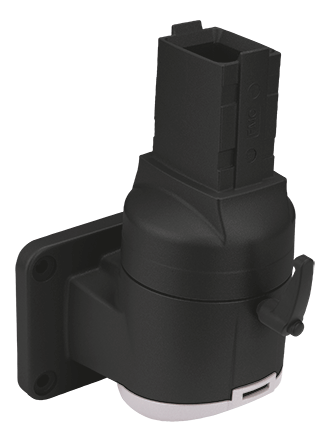

Syspend 180-Max Vertical Wall Joint, 9.67x6.10x5.28, Black, Aluminum
- Set screws and gasket are included
- Surface mounting fasteners are not provided
- White aluminum cable access cap is included
PRODUCT ATTRIBUTES
- Height: 9.67 in / 246 mm
- Width: 6.1 in / 155 mm
- Depth: 5.28 in / 134 mm
- Material: Aluminum
- Color: Jet Black
- Color Code: RAL 9005
- Finish: Powder Coated
- Weight: 5.8 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
Syspend 180-Max Vertical Wall Joint mounts the suspension system to a vertical surface, allowing the tube to extend vertically. The arm can be rotated 300 degrees. Includes a safety stop and maintenance-free bearings.
BULLETIN NUMBER
CS5
Other Information
Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
