Product Overview

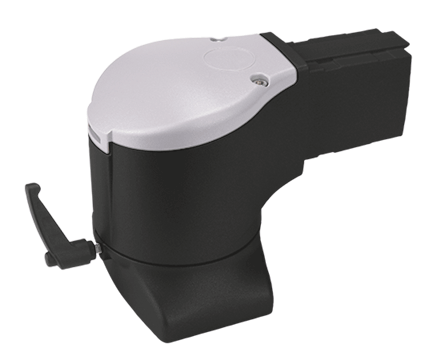

Syspend 180-Max Flange Elbow Coupling, 5.42x7.68x4.93, Lt Gray, Aluminum
- Coupling can rotate 300 degrees with stop
- Gasket, set screws, and mounting hardware are included
- White aluminum cable access cap is included
PRODUCT ATTRIBUTES
- Height: 5.43 in / 138 mm
- Width: 4.92 in / 125 mm
- Depth: 4.88 in / 124 mm
- Material: Aluminum
- Color: Light Gray
- Color Code: RAL 7035
- Finish: Powder Coated
- Weight: 4.9 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
Syspend 180-Max Flange Elbow Coupling attaches directly to the enclosure for applications where a vertical tube is not required. It enables the enclosure to rotate 300 degrees and can be locked into a given position. The flange elbow coupling has a safety stop and maintenance-free bearings.
BULLETIN NUMBER
CS5
