Product Overview

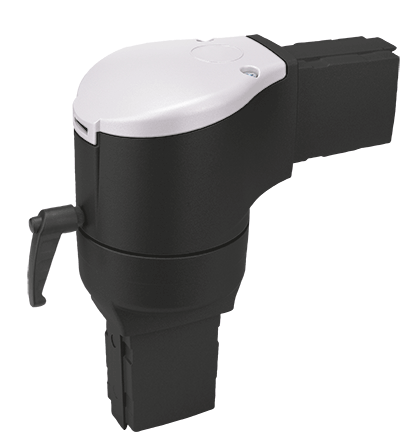

Syspend 180-Max Rotatable Elbow, 8.98x7.68x3.94, Black, Aluminum
- Set screws and gasket are included
- White aluminum cable access cap is included
PRODUCT ATTRIBUTES
- Height: 8.98 in / 228 mm
- Width: 7.68 in / 195 mm
- Depth: 3.94 in / 100 mm
- Material: Aluminum
- Color: Jet Black
- Color Code: RAL 9005
- Finish: Powder Coated
- Weight: 5.4 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
Syspend 180-Max Rotatable Elbow provides a 90-degree bend in the suspension system and allows the vertical tube to rotate 300 degrees. Includes safety stop and maintenance-free bearings.
BULLETIN NUMBER
CS5
Other Information
Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
