Product Overview

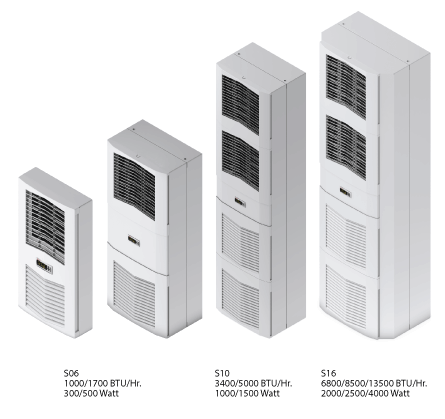

SpectraCool Slim Fit Indoor AC S10, 1000W 115V With RAC, Light Gray, Steel

Slim Fit Design with three mounting options; fully recessed, partial recessed and surface mount
Aesthetic design plastic cover to optimize air flow
R134a refrigerant
Voltage: 230 V (50/60 Hz), 115 V (50/60 Hz) and 400/460 V 3-phase (50/60 Hz)
Operating temperature range from 50 F / 10 C to 131 F / 55 C
Easy filter replacement for extremely dusty environments
Dust resistant coils for filterless operation
Active condensate management to prevent dripping water
Energy efficient rotary compressor
Terminal block power input
Standard cutout dimension for easy exchange
Every unit functionally tested before shipping
Standard Air Conditioners are compatible with an enclosure door switch
Remote Access Control Units support up to 2 temperature sensors and 10 alarms. They support multiple communication protocols: SNMP, Modbus TCP, Ethernet/IP, and Profinet.
Mounting hardware, gaskets and user manual furnished with the unit

PRODUCT ATTRIBUTES

Height: 37.4 in / 950 mm
Width: 15.7 in / 399 mm
Depth: 10.2 in / 259 mm
Nominal Capacity Btu/h: 3400 Btu/h
Nominal Capacity Watts: 1000 W
Nominal Voltage: 115 V
Max Current: 34 A
Operating Temperature: 50 – 131 °F / 10 – 55 °C
Protection Rating: NEMA Type 12
Remote Access Control: Yes
Material: Mild Steel
Finish: Powder Coated
Color: Light Gray
Color Code: RAL 7035
Thickness: 18 ga / 1.21 mm
Weight: 39 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

SpectraCool SlimFit Air Conditioners are designed with three space-saving mounting options to maximize footprint. They have been developed to meet the requirements of worldwide industrial customers, easy to specify and easy to use. From filterless operation to global certifications, the SpectraCool Slim Fit Air Conditioner makes automation cooling easy for system designers and operations maintenance teams around the world.

Select units come with Remote Access Control (RAC), an integrated, parametric controller designed to work seamlessly with our enclosure air conditioner units for the purpose of remotely monitoring and managing anywhere from a single unit to an entire network of Spectra cool air conditioners from virtually anywhere in the world with a secure internet connection. Ensure that your systems are always running at optimal temperature levels, increase productivity and improve overall system reliability.

BULLETIN NUMBER

MCLG
