Product Overview

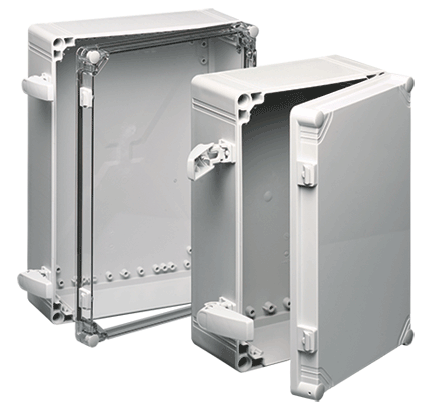

QLine I Enclosure Type 4X, 600x400x180mm, ABS
- Body is impact-resistant polycarbonate for PCI series and ABS for ABI series
- Opaque and clear covers are impact-resistant polycarbonate for PCI, opaque covers are ABS for ABI series
- Polycarbonate and ABS material is easily punched, drilled, filed or sawed
- Mounting holes molded directly under cover screws
- Molded internal pads for mounting optional panels, rails and other components
- Molded internal rails for mounting adjustable-depth panel kit
- Screws provided for mounting optional panel
- Optional extension rings are molded polycarbonate
- Cover includes a molded-in hole for wire lead
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Material is halogen free
- Screw Cover Enclosures have easy-to-remove covers attached to body with strong, durable polyamide cross-point cover screws
- Enclosures with Quick-Release Latches have polycarbonate hinges and polyester latches with a padlock provision
PRODUCT ATTRIBUTES
- Height: 15.75 in / 400 mm
- Width: 23.62 in / 600 mm
- Depth: 7.09 in / 180 mm
- Protection Rating: NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66
- Material: ABS
- Panel Size: 22.05 x 14.17 in / 560 x 360 mm
- Mounting: 22.83 x 14.96 in / 580 x 380 mm
- Panel: Q6040PI
- Cover Style: Opaque
- Latch Type: Screw Cover
- External Dimensions: 600 x 400 mm / 23.62 x 15.75 in
- Extension Ring: Q6040EXTI
- Color: Light Gray
- Color Code: RAL 7035
- Finish: Smooth Gloss
- Thickness: 0.12 in / 3 mm
- Weight: 9.4 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Material Safety Data Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
The largest-sized QLine enclosure, QLine I provides easy access and protects larger controls from corrosive environments. Choose from screw cover, hinge, internal mounting, variable depth and quick-release latch options to meet your design and security requirements. The ABS series shares the same features and similar physical properties as the polycarbonate but is a more economical, non-UL rated alternative.
Purchase panels and extension rings separately
