Product Overview

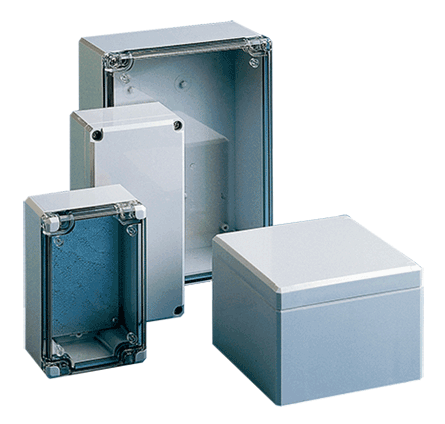

QLine D Enclosure Type 4X, 300x230x111mm, Light Gray, ABS
- Body is impact-resistant polycarbonate for PCD series and ABS for ABD series
- Opaque and clear covers are impact-resistant polycarbonate for PCD series and ABS for ABD series
- Polycarbonate material is easily punched, drilled, filed or sawed
- Straight side walls permit ganging of multiple enclosures
- Cross-point captivated cover screws are stainless steel
- Mounting holes molded directly adjacent to cover screws
- Cover screws protected by removable caps that are aesthetic and provide tamper resistance
- Molded internal pads for mounting optional panels, rails and other components
- Panel mounting feature on both body and cover
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Screws provided for mounting optional panel
- Material is halogen free
PRODUCT ATTRIBUTES
- Height: 9.06 in / 230 mm
- Width: 11.81 in / 300 mm
- Depth: 4.37 in / 111 mm
- Protection Rating: NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66
- Material: ABS
- Panel Size: 10.43 x 8.27 in / 265 x 210 mm
- Panel: Q3023PD
- Mounting: 288 x 200 mm / 11.34 x 7.87 in
- Cover Style: Opaque
- External Dimensions: 11.81 x 9.06 in / 300 x 230 mm
- Color: Light Gray
- Color Code: RAL 7035
- Finish: Smooth Gloss
- Thickness: 0.08 in / 2 mm
- Weight: 2.2 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Engineering Specification
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
QLine D polycarbonate and ABS enclosures have contoured bodies with flush cover screws for an attractive, contemporary appearance. Tough as well as stylish, they are functional in corrosive environments and can withstand occasional submersion. The ABS series shares the same features and similar physical properties as the polycarbonate but is a more economical, non-UL rated alternative.
Purchase panels separately
BULLETIN NUMBER
