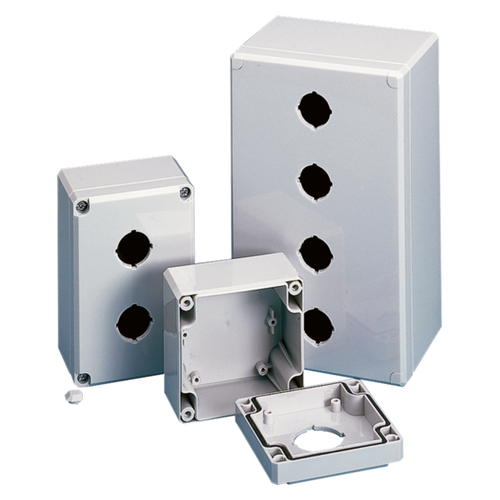

QLine D Pushbutton Enclosure Type 4X, 1PBx22.5mm, Light Gray, Polycarbonate
- High-impact polycarbonate material is used for both body and cover
- Polycarbonate material is easily punched, drilled, filed or sawed
- Straight side walls permit ganging of multiple enclosures
- Cross-point captivated cover screws are stainless steel
- Mounting holes molded directly adjacent to cover screws
- Cover screws protected by removable caps that are both aesthetic and provide tamper resistance
- Molded internal pads for mounting optional panels, rails or other components
- Seamless foam-in-place gasket assures watertight and dust-tight seal
- Screws provided for mounting optional panel
- Optional panels are unpainted plated steel
- Mounting hardware furnished
- Material is halogen free
PRODUCT ATTRIBUTES
- Height: 2.95 in / 75 mm
- Width: 2.87 in / 73 mm
- Depth: 3.11 in / 79 mm
- Protection Rating: NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66
- Material: Polycarbonate
- Finish: Smooth Gloss
- Color: Light Gray
- Color Code: RAL 7035
- Thickness: 0.12 in / 3 mm
- Hole Size: 22.5 mm
- External Dimensions: 3.23 x 3.15 in / 82 x 80 mm
- Panel: Q88PD
- Panel Size: 2.68 x 2.17 in / 68 x 55 mm
- Mounting: 2.76 x 1.97 in / 70 x 50 mm
- Weight: 0.3 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Engineering Specification
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
Used for insulating and housing 30.5-mm or 22.5-mm pushbuttons in hostile environments, QLine D Enclosures have contoured bodies with flush cover screws for an attractive, contemporary appearance.
Purchase panels separately
BULLETIN NUMBER
Q41
