Description

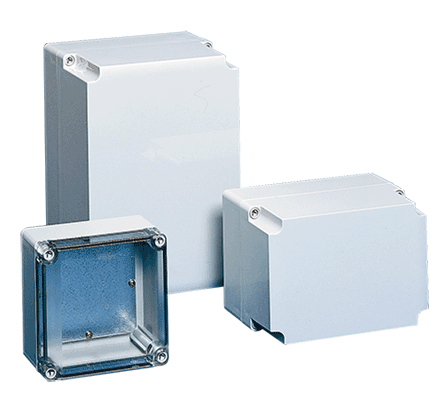

QLine E Enclosure Clear Cover Type 4X, 175x125x100mm, Light Gray, ABS

Body is impact-resistant polycarbonate for PCE series and ABS for ABE series
Opaque and clear covers are impact-resistant polycarbonate for PCE, opaque covers are ABS for ABE series
Polycarbonate and ABS material is easily punched, drilled, filed or sawed
Cross-point flush cover screws are strong, durable polyamide
Cover includes a molded-in wire lead hole
Mounting tracks along body side walls for PC card installation
Molded internal pads for mounting optional panels, rails and other components
Seamless foam-in-place gasket assures water-tight and dust-tight seal
Material is halogen free

PRODUCT ATTRIBUTES

Height: 4.92 in / 125 mm
Width: 6.89 in / 175 mm
Depth: 3.94 in / 100 mm
Protection Rating: NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66
Material: ABS
Finish: Smooth Matte
Color: Light Gray
Color Code: RAL 7035
Door Thickness: 0.14 in / 4 mm
Body Thickness: 0.12 in / 3 mm
Cover Style: Clear
Panel Size: 5.83 x 3.86 in / 148 x 98 mm
Mounting: 6.30 x 4.33 in / 160 x 110 mm
External Dimensions: 175 x 125 mm / 6.89 x 4.92 in
Panel: Q1813PE
Weight: 0.94 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

QLine E Enclosures house larger controls, provide additional size-range options and offer greater internal mounting flexibility than smaller QLine products. Featuring contoured bodies with flush cover screws, they are functional in corrosive environments and can withstand occasional submersion. The ABS series shares the same features and similar physical properties as the polycarbonate but is a more economical, non-UL rated alternative.

Purchase panels separately

BULLETIN NUMBER

Q41
