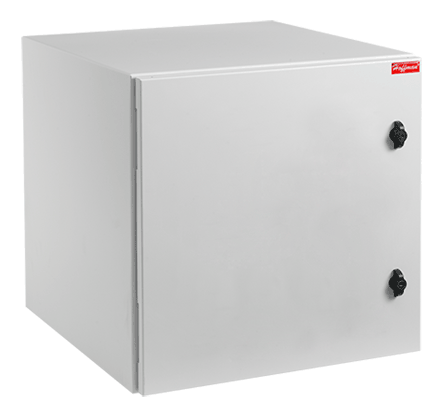

Hoffman PTRS482424G4 PROTEK Nema Type 4/12 Solid Door Cabinet

Hoffman PTRS482424G4 PROTEK Nema Type 4/12 Solid Door Cabinet

$1,538.00
SKU:
PTRS482424G4
Shipping:
Calculated at Checkout
Rack Units:
26U
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Manufacturer Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

ProTek Single-Door Solid Type 4 12, 48.54x23.62x24.02, Lt Gray, Steel

  • Solid-door cabinet provides complete physical and visual protection
  • Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
  • All seams are fully welded and ground smooth
  • Doors are provided with ground studs to facilitate proper bonding and grounding of the cabinet
  • Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
  • Key-locking wing knob is included on painted steel offering, providing access control to the cabinet; two keys are included with each cabinet
  • Stainless steel cabinet is provided with a quarter-turn slotted latch
  • One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front-to-back, is provided with each center section of the cabinet; additional tapped- or square-hole rack angles can be added to the cabinet to provide additional mounting
  • Wall section welded panel studs which accommodate standard panels (steel and wood available), can be ordered separately

PRODUCT ATTRIBUTES

  • Height: 48.54 in / 1233 mm
  • Width: 23.62 in / 600 mm
  • Depth: 24.02 in / 610 mm
  • Protection Rating: NEMA Type 12; NEMA Type 4; IP66
  • Material: Mild Steel
  • Rack Units: 26
  • Optional Steel Panel: CP4420
  • Optional Wood Panel: CP4420W
  • Additional Rack Angles: PTRA48T or PTRA48S
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Powder Coated
  • Thickness: 14 ga / 1.9 mm
  • Weight: 150 lb

ADDITIONAL PRODUCT DETAILS

ProTek Single-Door cabinets are an excellent, off-the-shelf choice for mounting 19-inch rack, panel-mounted devices or other electronic equipment. The cabinets are designed to provide both front and rear access to 19-inch rack-mounted equipment. They provide protection against water, dirt, corrosive agents and other contaminants. ProTek is an excellent choice for applications where space is at a premium and the only option is wall mounting. ProTek comes in a broad range of sizes, materials and configurations to meet many demanding applications.

BULLETIN NUMBER

DWS12
