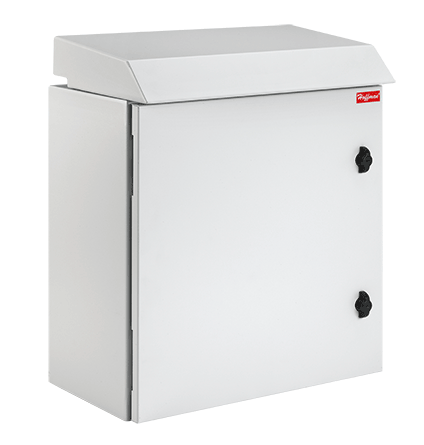

ProTek S-D Fan Packages, Type 3R, 48.54x23.62x24.02, Lt Gray, Steel, Solid
- Solid-door cabinet provides complete physical and visual protection
- Integral top solar/drip shield
- Two thermostatically-controlled, long-life, high-performance fans mounted into top
- Perforated, vented base with internal, expanded metal, serviceable filter
- Window door, made of scratch-resistant safety glass, provides visual monitoring of internal equipment while maintaining equipment protection
- All seams are fully welded and ground smooth
- Door and body are provided with ground studs to facilitate proper bonding and grounding of the cabinet
- Premium seamless, foam-in-place gasket prevents contaminants from entering the cabinet
- Key-locking wing knob provides access control to the cabinet; two keys are included with each cabinet
- Additional rack angles in tapped and square-hole versions can be added to the cabinet
- One set of plated, self-grounding, tapped 10-32 rack angles per EIA universal spacing standards, which can be adjusted front-to-back, is provided with each cabinet
- Wall section welded panel studs which accommodate standard panels (steel and wood available), can be ordered separately
PRODUCT ATTRIBUTES
- Material: Mild Steel
- Rack Units: 26
- Optional Steel Panel: CP4420
- Optional Wood Panel: CP4420W
- Additional Rack Angles: PTRA48T or PTRA48S
- Body Thickness: 14 ga / 1.9 mm
- Color: Light Gray
- Color Code: RAL 7035
- Door Thickness: 16 ga / 1.52 mm
- Finish: Powder Coated
- Weight: 211 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Drawing Document
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
ProTek Single-Door Fan Package cabinets are an excellent, off-the-shelf choice for mounting 19-inch rack, panel-mounted devices or other electronic equipment. An integral top solar/drip shield and thermostatically-controlled fans provide airflow to cool internal equipment. Cabinets are available in UL Type 3R for indoor/ outdoor use. A UL Type 1 window-door version is available for indoor applications. The integral fans provide cooling for internallymounted equipment. The enclosures provide protection against water, dirt and other contaminants. ProTek is an excellent choice for applications where space is at a premium and the only option is wall mounting. ProTek comes in a broad range of sizes, materials and configurations to meet many demanding applications.
Performance data based on:
Effective measured airflow provided by integral fans is 272 CFM (6-in.) or 113 CFM (4-in.)
Delta T or ΔT (Ambient Temperature – Maximum in-cabinet Temperature)
Ambient air must be cooler than maximum in-cabinet temperature
For applications that have less than a ΔT of 5 F, use ProTek with AC unit
Total Cooling = (Air cooling + Cabinet cooling)
Air Cooling [Watts = .316 x CFM x ΔT] Cabinet cooling [Watts = (.22 x Area) / ΔT]
Example: Cabinet height 24 in. x 24 in. deep with ambient temperature 110 F, with a maximum internal cabinet temperature 120 F (ΔT = 10 F). The cabinet and fans will provide a total cooling capability of 762 Watts or 1300 BTU.
(See Performance Charts)
