Product Overview

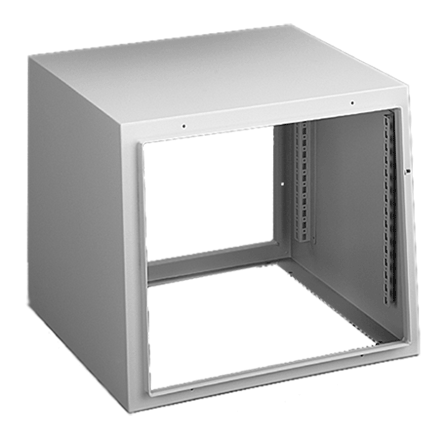

ProLine Sloped-Front HMI Enclosure Type 12, 500x600x600mm, Lt Gray, Steel
- Enclosure is available in three heights
- The bottom of the 600x600-mm sizes can be joined through a base with cutout to a pedestal or pendant arm system
- A support bracket allows the 600x600-mm sizes to be suspended from an overhanging pendant arm system
PRODUCT ATTRIBUTES
- Height: 19.69 in / 500 mm
- Width: 23.62 in / 600 mm
- Depth: 23.62 in / 600 mm
- Protection Rating: IP55
- Material: Mild Steel
- Nominal Dimensions: 500 x 600 x 600 mm
- Front Opening: 440 x 536 mm / 17.31 x 21.11 in
- Rear Opening: 435 x 536 mm / 17.13 x 21.11 in
- Internal Mounting: 325 mm / 12.8 in
- Color: Light Gray
- Color Code: RAL 7035
- Finish: Powder Coated
- Thickness: 14 ga / 1.9 mm
- Weight: 46.72 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
A truly modular, build-your-own system, ProLine Sloped-Front HMI Enclosure foundation is extremely adaptable for nearly any application. Full-front opening for door/cover options has a 5-degree slope. Rear opening(s) for door and cover options. Optional ProLine Frame Shelf or ProLine Grid System is recommended to provide a stationary platform for supporting deep equipment. The open bottom is suitable for joining the top to a 700-mm-tall ProLine frame.
BULLETIN NUMBER
Other Information
ProLine Sloped-Front HMI Enclosure Type 12, 500x600x600mm, Lt Gray, Steel
- Enclosure is available in three heights
- The bottom of the 600x600-mm sizes can be joined through a base with cutout to a pedestal or pendant arm system
- A support bracket allows the 600x600-mm sizes to be suspended from an overhanging pendant arm system
PRODUCT ATTRIBUTES
- Height: 19.69 in / 500 mm
- Width: 23.62 in / 600 mm
- Depth: 23.62 in / 600 mm
- Protection Rating: IP55
- Material: Mild Steel
- Nominal Dimensions: 500 x 600 x 600 mm
- Front Opening: 440 x 536 mm / 17.31 x 21.11 in
- Rear Opening: 435 x 536 mm / 17.13 x 21.11 in
- Internal Mounting: 325 mm / 12.8 in
- Color: Light Gray
- Color Code: RAL 7035
- Finish: Powder Coated
- Thickness: 14 ga / 1.9 mm
- Weight: 46.72 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
A truly modular, build-your-own system, ProLine Sloped-Front HMI Enclosure foundation is extremely adaptable for nearly any application. Full-front opening for door/cover options has a 5-degree slope. Rear opening(s) for door and cover options. Optional ProLine Frame Shelf or ProLine Grid System is recommended to provide a stationary platform for supporting deep equipment. The open bottom is suitable for joining the top to a 700-mm-tall ProLine frame.
