Product Overview

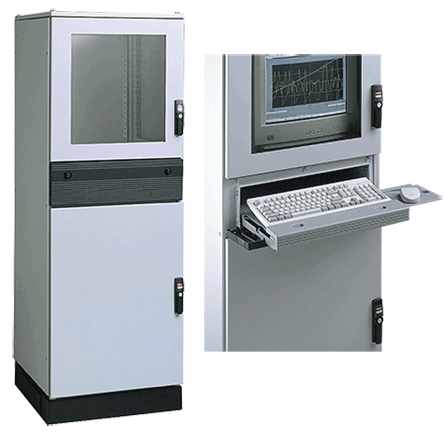

PROLINE-PC Modular Enclosure Type 12, 2000x600x600, Lt Gray, Steel

Frame is enclosed with solid sides, a solid top and a 100-mm solid base.
Three doors, two in front and one in back, provide convenient access
Sealed keyboard compartment maintains enclosure integrity when the compartment door is opened
The 19-in. diagonal top window door, hinged on the left, offers viewing access for a variety of monitor sizes and has a small flush swing handle with keylock for system security
The vented frame shelf in the top compartment is constructed of 14 gauge steel and is painted with RAL 7035 textured light-gray polyester powder paint
The ProLine keyboard compartment includes a locking feature, an angled palm rest, a cable access port for wiring and integral mouse pad holders for both left-handed and right-handed people
The accessory front opening accommodates a number of optional components, such as keyboard shelves and control compartments
The bottom compartment includes a solid door hinged on the left that has a small flush swing handle with key lock; compartment can be used to install computer equipment, panel-mounted equipment or rack mounted control systems

PRODUCT ATTRIBUTES

Height: 78.74 in / 2000 mm
Width: 23.62 in / 600 mm
Depth: 23.62 in / 600 mm
Protection Rating: NEMA Type 12; IP55
Material: Mild Steel; Stainless Steel
Top Door Opening Height: 958 mm / 37.72 in
Top Door Opening Width: 736 mm / 28.98 in
Bottom Door Opening Height: 739 mm / 29.09 in
Color: Light Gray
Color Code: RAL 7035
Finish: Powder Coated
Thickness: 16 ga / 1.52 mm
Weight: 306 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

ProLine-PC Modular Enclosures are ideal for applications that require housing standard PCs and keyboards. A modular system, these enclosures provide multiple configuration possibilities-simply add components to the frame to create a single enclosure, or gang multiple enclosures for larger or more complex applications.

100-mm solid base is included in the A dimension.

BULLETIN NUMBER

P20PC

Other Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.

Product Overview
Other Information

PROLINE-PC Modular Enclosure Type 12, 2000x600x600, Lt Gray, Steel

Frame is enclosed with solid sides, a solid top and a 100-mm solid base.
Three doors, two in front and one in back, provide convenient access
Sealed keyboard compartment maintains enclosure integrity when the compartment door is opened
The 19-in. diagonal top window door, hinged on the left, offers viewing access for a variety of monitor sizes and has a small flush swing handle with keylock for system security
The vented frame shelf in the top compartment is constructed of 14 gauge steel and is painted with RAL 7035 textured light-gray polyester powder paint
The ProLine keyboard compartment includes a locking feature, an angled palm rest, a cable access port for wiring and integral mouse pad holders for both left-handed and right-handed people
The accessory front opening accommodates a number of optional components, such as keyboard shelves and control compartments
The bottom compartment includes a solid door hinged on the left that has a small flush swing handle with key lock; compartment can be used to install computer equipment, panel-mounted equipment or rack mounted control systems
