Product Overview

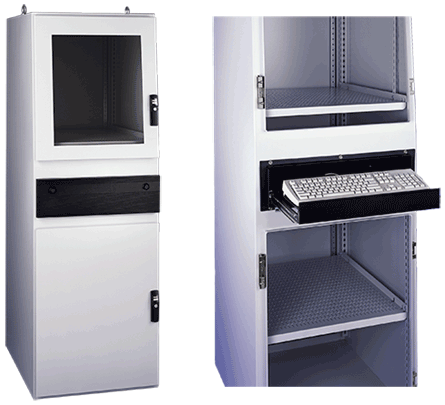

ProLine Gold Series Computer Workstation Type 12, 1800x600x600, Lt Gray, Steel

Seams continuously welded and ground smooth
Seamless foam-in-place gasket on all doors and covers
Smoke gray 0.25-in.-thick polycarbonate window on upper front door
Quarter-turn latches on upper front door for 1400-mm high cabinets
ProLine latching system and key locking swing door handles on upper front door for 1600- and 1800-mm high cabinets
Solid lower front and full rear doors with key locking swing door handles
Internal rails facilitate mounting of ProLine internal components
Options include solid upper front door and solid front and rear covers with screw fasteners
Full rear opening provides maximum mounting space and easy access to interior components
Optional partial subpanel
Hinges on bottom for 1400-mm enclosures
Solid center post on front for 1200-mm enclosures

PRODUCT ATTRIBUTES

Height: 70.19 in / 1785 mm
Width: 23.94 in / 608 mm
Depth: 21.74 in / 552 mm
Protection Rating: NEMA Type 12; IP55
Material: Mild Steel
Nominal Height: 1800 mm
Nominal Width: 600 mm
Top Door Opening Height: 637 mm / 25.08 in
Top Door Opening Width: 536 mm / 21.1 in
Bottom Door Opening Height: 739 mm / 29.09 in
Bottom Door Opening Width: 536 mm / 21.1 in
Rear Door Opening Height: 1711 mm / 67.36 in
Rear Door Opening Width: 536 mm / 21.1 in
Color: Light Gray
Color Code: RAL 7035
Finish: Powder Coated
Weight: 253 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

The ProLine Gold Series Computer Workstation is a full-featured, off-the-shelf solution for protecting computer systems. Made with sturdy unibody construction, the enclosure accommodates a complete range of accessories.

Keyboard door finish is RAL 9005 textured black

BULLETIN NUMBER

P10

Other Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
