Description

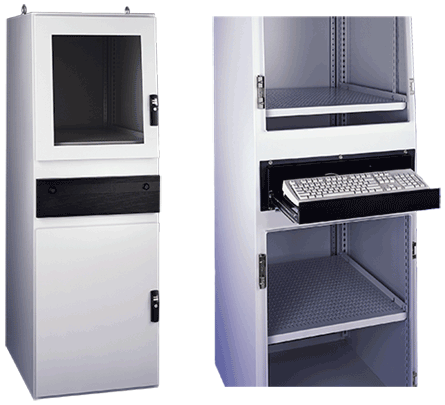

ProLine Gold Series Computer Workstation Type 12, 1400x1200x600, Lt Gray, Steel
- Seams continuously welded and ground smooth
- Seamless foam-in-place gasket on all doors and covers
- Smoke gray 0.25-in.-thick polycarbonate window on upper front door
- Quarter-turn latches on upper front door for 1400-mm high cabinets
- ProLine latching system and key locking swing door handles on upper front door for 1600- and 1800-mm high cabinets
- Solid lower front and full rear doors with key locking swing door handles
- Internal rails facilitate mounting of ProLine internal components
- Options include solid upper front door and solid front and rear covers with screw fasteners
- Full rear opening provides maximum mounting space and easy access to interior components
- Optional partial subpanel
- Hinges on bottom for 1400-mm enclosures
- Solid center post on front for 1200-mm enclosures
PRODUCT ATTRIBUTES
- Height: 55.12 in / 1400 mm
- Width: 47.24 in / 1200 mm
- Depth: 23.62 in / 600 mm
- Protection Rating: NEMA Type 12; IP55
- Material: Mild Steel
- Nominal Height: 1400 mm
- Nominal Width: 1200 mm
- Nominal Depth: 600 mm
- Top Door Opening Height: 406 mm / 16 in
- Top Door Opening Width: 1136 mm / 44.72 in
- Bottom Door Opening Height: 709 mm / 27.91 in
- Bottom Door Opening Width: 536 mm / 21.1 in
- Rear Door Opening Height: 1454 mm / 57.25 in
- Rear Door Opening Width: 1138 mm / 44.72 in
- Color: Light Gray
- Color Code: RAL 7035
- Finish: Powder Coated
- Weight: 369 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
The ProLine Gold Series Computer Workstation is a full-featured, off-the-shelf solution for protecting computer systems. Made with sturdy unibody construction, the enclosure accommodates a complete range of accessories.
Keyboard door finish is RAL 9005 textured black
BULLETIN NUMBER
P10
