Description

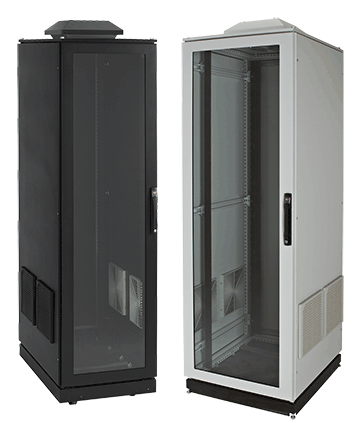

ProLine V/D Server Cabinets with Fan Type 1, 2000x700x800mm, Gray, Steel
- Gasketed covers and air intake filters keep contaminants away
- Removable filters can be cleaned to maintain optimal performance
- Fan and filter package provides up to 600 CFM of filtered air to cool equipment
- Three-point locking handles on all doors provide easy but controlled access; two keys included
- Rack angles are infinitely adjustable from front to rear for positioning flexibility
- Mobile base provides easy placement of cabinet
- Mobile base includes casters, levelers and gland plate
- Levelers and anti-tip bracket secure cabinet to the floor
PRODUCT ATTRIBUTES
- Height: 86.74 in / 2203 mm
- Width: 27.87 in / 708 mm
- Depth: 31.46 in / 799 mm
- Protection Rating: NEMA Type 1
- Material: Mild Steel
- Finish: Powder Coated
- Color: Light Gray
- Color Code: RAL 7035
- Thickness: 16 ga / 1.52 mm
- Hole Type: Tapped
- Rack Units: 42
- Rack Angle: PRA1920TPL1
- Cabinet Type: Voice/Data
- Weight: 435 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
ProLine Voice/Data Server Cabinets are ideal for factory floors, warehouses and other remote locations that require filtration of ambient air to protect network equipment.
BULLETIN NUMBER
DPSR
INDUSTRY STANDARDS
UL508A Listed; Type 1; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 1; File No. E61997
EIA RS-310-
