Description

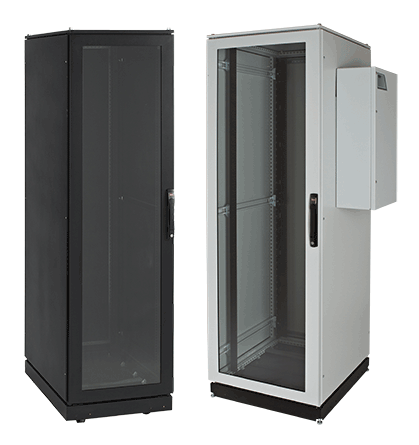

ProLine V/D Server Cabinet with G28 Type 12, 2000x700x800mm, Gray, Steel

Fully gasketed to keep contaminants away from equipment, reducing maintenance costs
Three-point locking handles on all doors provide easy but controlled access; two keys included
Rack angles are infinitely adjustable from front to rear for positioning flexibility
Mobile base provides easy placement of cabinet
Levelers and anti-tip bracket secure cabinet to the floor
AC package has cutout for easy in-the-field installation of SpectraCool G-Series Air Conditioner (shipped separately)
Mobile base includes casters, levelers and gland plate
Gland plate allows easy routing of cable

PRODUCT ATTRIBUTES

Style: Voice Data Cabinet, AC-Ready
Height: 82.1 in / 2085 mm
Width: 27.87 in / 708 mm
Depth: 31.46 in / 799 mm
Protection Rating: NEMA Type 12
Material: Mild Steel
Finish: Powder Coated
Color: Light Gray
Color Code: RAL 7035
Thickness: 16 ga / 1.52 mm
Hole Type: Tapped
Rack Units: 42
Rack Angle: PRA1920TPL1
Cabinet Package Type: Voice Data, AC Ready
Weight: 420 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

Robustly built and sealed for use in wet, dusty or hot environments, ProLine Type 12 Cabinets have optional cutouts to air condition voice/data equipment and servers.

Order air conditioner separately.

BULLETIN NUMBER

DPSR
