Product Overview

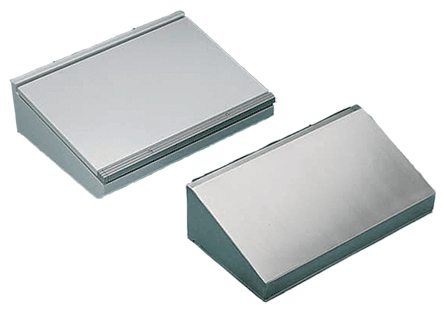

PROLINE-PC 20-Degree Control Compartment, fits 800mm wide, Lt Gray, Steel
- Reversible design
- Screw cover on the flat side has foam in place gasket
- Ground stud and mounting hardware included.
PRODUCT ATTRIBUTES
- Height: 6.89 in / 175 mm
- Width: 31.17 in / 792 mm
- Depth: 12.75 in / 324 mm
- Material: Mild Steel
- Fits Frame Width: 800 mm
- Weight: 26 lb / 28.5 lb
- Color: Light Gray
- Color Code: RAL 7035
- Finish: Powder Coated
- Thickness: 14 ga / 1.9 mm
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
Reversible design provides 20-degree angled surface for mounting operator controls. Smaller angle maximizes mounting space available. Screw cover on the flat side allows easy access inside compartment. Screw cover has foam-in-place gasketing. Compartment is gasketed around the open rear surface to extend the UL and CSA rating to the control compartment interior. Ground stud and mounting hardware included.
