Product Overview
APPLICATION:

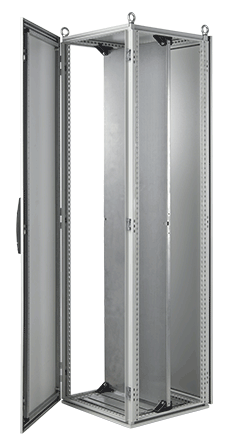

Proline G2 Industrial Packages are full-featured, ready-touse enclosure solutions that make it unnecessary to order each component separately. For convenience, a single part number includes a frame, solid door(s), handle and key lock, a solid top, a solid rear cover, a full mounting subpanel, a gland plate, and four lifting eyes. Side covers ordered separately to accommodate joining/baying applications.
FEATURES:
(Refer to separate specifications for more complete details of individual components)
- 12 gauge, roll-formed steel frame with welded steel corners and hybrid frame profile for superior performance under load
- Large galvanized mounting subpanel
- EZ-Load Glide Blocks, which accommodate five loading methods
- Smooth glide latching system for a solid seal with a low closure force
- Galvanized Duro-Stand gland plate
- Wide range of standard size options
- ‘E’ version (right-hinged and double-bit insert key lock)
SPECIFICATIONS:
(Refer to separate specification sheets for more complete details of individual components) Frame
- 12-gauge (2.5 mm) roll formed steel frame, fully welded corners, hybrid profile
- Accommodate the 25-mm DIN standard and include rectangular and round holes Gasket
- Seamless polyurethane gasket provides a watertight, dust-tight seal against moisture and contaminants
- UL component recognized, CSA compliant
- Sealed mounting for all external accessories Doors
- Door bar system on all doors (including window doors)
- Single/primary door includes 3-point roller latch system with timed latch engagement for enclosures ≥1000 mm in height
- 2-door enclosures include overlapping double doors to provide full-width open front; secondary door latches with two levers
- Reversible hinging on single doors (default left hinge)
- Reversible hinging on overlapping double doors (default right door primary door)
- Two grounding studs
- Low-Profile Swing Handle with key lock on standard versions; double bit lock on ‘E’ versions. Other options available. Mounting subpanel
- Includes EZ-Load Mounting Blocks, which accommodate five loading options: vertical front, vertical side, vertical rear, horizontal front (frame over subpanel), horizontal rear (subpanel lowered into frame)
- Subpanel is securely fastened to the top and bottom of the frame. Enclosures less than 1200 mm tall use 4 sets of EZ-Load Glide Blocks. Enclosures 1200 mm tall or greater use 8 sets of glide blocks for a well secured subpanel.
- Depth adjustable, accommodates back-to-back subpanels
- Galvanized full subpanel default; painted subpanel available
ACCESSORIES:
- Side Cover
- Side Door Adaptor
- Full Subpanel (Rear or Side)
- Partial Subpanel and Side-Mount Panel
- Panel Support Bracket
- Joining Subpanel
- Grid Strap Network (Rail System)
- Center Upright
- Support Bracket Kit
- Plinth Base
- Fully-Sealed Plinth Base
- Caster Kit
- Frame Joining Kits
- Joining Kit Support Bracket
- Dust Cover
- Flush Swing Handles
- Steel Data Pocket
- 19-Inch Rack Angles
- Pagoda Top
- Lifting Angles
- Barrier Panel
- Mechanical Interlock
- Proline Grounding Kit
