Product Overview

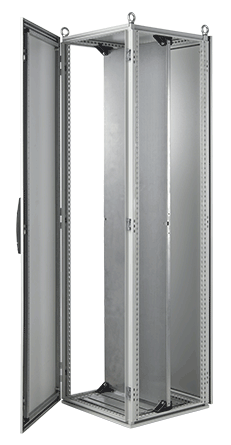

ProLine G2 Industrial Packages Type 3R, 2000x600x600, Lt Gray, Steel

12-gauge (2.5 mm) roll-formed steel with welded corners, and hybrid frame profile for superior performance under load
Consistent with Type-12 Industrial Packages, fasteners/brackets material upgraded to limit oxidation
Smooth glide latching system on door for a solid seal with a low closure force
Galvanized Duro-Stand gland plate base
Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
Seamless Polyurethane gasket provides a water-tight, dust-tight seal against moisture and contaminants
Door bar system and two grounding studs present
Single/primary door includes 3-point roller latch system with timed latch engagement
2-door enclosures include overlapping double doors to provide full-width open front; secondary door latches with two levers
Reversible hinging on single doors (default left hinge) and overlapping double doors (default right door primary)
Padlocking Flush Swing Handle standard, other options available
Mounting Subpanel includes EZ-Load Mounting Blocks, which accommodate five loading options: vertical front, vertical side, vertical rear, horizontal front (frame over subpanel), horizontal rear (subpanel lowered into frame)
Subpanel is securely fastened to the top and bottom of the frame; enclosures narrower than 1200 mm use 4 sets of EZ-Load Glide Blocks, while enclosures equal to or wider than 1200 mm use 8 sets of glide blocks for a well secured subpanel
Subpanel is depth adjustable, back-to-back subpanel configuration possible with purchase of second subpanel (sold separately)
Galvanized, full-height subpanel supplied standard, white painted subpanel available (sold separately)

PRODUCT ATTRIBUTES

Height: 78.82 in / 2002 mm
Width: 23.92 in / 608 mm
Depth: 23.82 in / 605 mm
Protection Rating: NEMA Type 12
Material: Mild Steel
Max Subpanel Size: 1906 x 528 mm / 75.0 x 20.8 in
Door Quantity: 1
Max Rack Mount Unit: 42
Color: Light Gray
Color Code: RAL 7035
Finish: Powder Coated
Weight: 237.83 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

ProLine G2 Industrial Packages are full-featured, ready-to-use enclosure solutions that make it unnecessary to order each component separately. For convenience, a single part number includes a frame, solid single or overlapping-double door, padlocking handle, solid top, solid rear cover, full mounting subpanel, gland plate base, and lifting eyes. To accommodate joining/baying applications, side covers and side cover hardware kits must be ordered separately. To prevent oxidation in 3R environments, all hardware has been changed to stainless steel or received additional plating.

HxWxD are nominal height, width and depth dimensions.

BULLETIN NUMBER

P41

Other Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
