Product Overview

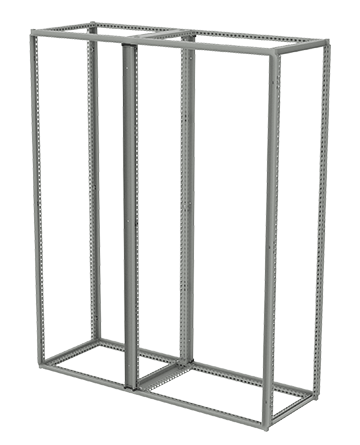

ProLine G2 Disconnect Frames, 2200x1600x400
- 12-gauge (2.5 mm) roll-formed steel with welded corners, and hybrid frame profile for superior performance under load
- Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
- RAL 7035 textured light-gray polyester powder paint finish
- Similar in design and construction as other ProLine G2 frames, but incorporates a 100-mm offset due to the presence of a 200-mm mullion door in the disconnect door solution
- Includes combination removable center upright/verticals in both the front and rear of the enclosure, again with a 100-mm offset
- Disconnect specific frame is required for any enclosure solution >1000mm in width; widths 1000mm or less utilize a standard single-bay frame
PRODUCT ATTRIBUTES
- Max Subpanel Size: 2106 x 1528 mm / 82.9 x 60.2 in
- Max Rack Mount Unit: 47
- Color: Light Gray
- Color Code: RAL 7035
- Finish: Powder Coated
- Material: Mild Steel
- Thickness: 12 ga / 2.66 mm
- Weight: 545 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
ProLine G2 Disconnect Frames can be used with ProLine G2 Disconnect Doors and Disconnect components to configure a custom Disconnect Enclosure Solution from standard modular enclosure components.
HxWxD are nominal height, width and depth dimensions.
BULLETIN NUMBER
P40
Other Information
Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
ProLine G2 Disconnect Frames, 2200x1600x400
- 12-gauge (2.5 mm) roll-formed steel with welded corners, and hybrid frame profile for superior performance under load
- Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
- RAL 7035 textured light-gray polyester powder paint finish
- Similar in design and construction as other ProLine G2 frames, but incorporates a 100-mm offset due to the presence of a 200-mm mullion door in the disconnect door solution
- Includes combination removable center upright/verticals in both the front and rear of the enclosure, again with a 100-mm offset
- Disconnect specific frame is required for any enclosure solution >1000mm in width; widths 1000mm or less utilize a standard single-bay frame
PRODUCT ATTRIBUTES
- Max Subpanel Size: 2106 x 1528 mm / 82.9 x 60.2 in
- Max Rack Mount Unit: 47
- Color: Light Gray
- Color Code: RAL 7035
- Finish: Powder Coated
- Material: Mild Steel
- Thickness: 12 ga / 2.66 mm
- Weight: 545 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
ProLine G2 Disconnect Frames can be used with ProLine G2 Disconnect Doors and Disconnect components to configure a custom Disconnect Enclosure Solution from standard modular enclosure components.
HxWxD are nominal height, width and depth dimensions.
BULLETIN NUMBER
P40
Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
