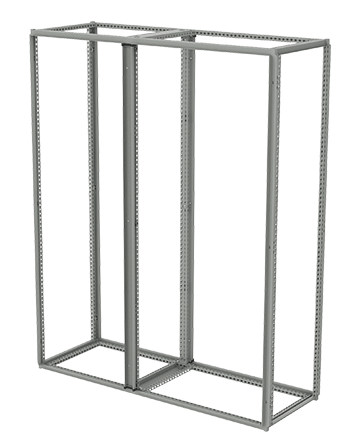

Hoffman P2FD18186 Proline G2 Disconnect Frame

Hoffman P2FD18186 Proline G2 Disconnect Frame

$3,654.00
SKU:
P2FD18186
Shipping:
Calculated at Checkout
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Manufacturer Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

ProLine G2 Disconnect Frames, 1800x1800x600

  • 12-gauge (2.5 mm) roll-formed steel with welded corners, and hybrid frame profile for superior performance under load
  • Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
  • RAL 7035 textured light-gray polyester powder paint finish
  • Similar in design and construction as other ProLine G2 frames, but incorporates a 100-mm offset due to the presence of a 200-mm mullion door in the disconnect door solution
  • Includes combination removable center upright/verticals in both the front and rear of the enclosure, again with a 100-mm offset
  • Disconnect specific frame is required for any enclosure solution >1000mm in width; widths 1000mm or less utilize a standard single-bay frame

PRODUCT ATTRIBUTES

  • Max Subpanel Size: 1706 x 1728 mm / 67.2 x 68.0 in
  • Max Rack Mount Unit: 38
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Powder Coated
  • Material: Mild Steel
  • Thickness: 12 ga / 2.66 mm
  • Weight: 545 lb

ADDITIONAL PRODUCT DETAILS

ProLine G2 Disconnect Frames can be used with ProLine G2 Disconnect Doors and Disconnect components to configure a custom Disconnect Enclosure Solution from standard modular enclosure components.

HxWxD are nominal height, width and depth dimensions.

BULLETIN NUMBER

P40
