Description

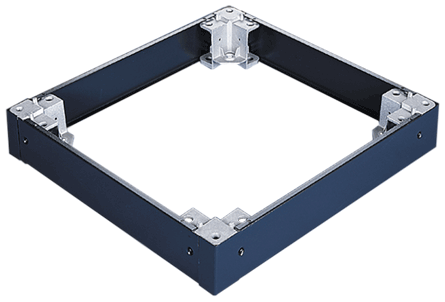

ProLine G2 100-mm Plinth Bases, fits 800x500mm, Black, Steel
- Four access panels for cable management options at the base of the enclosure
- Sturdy cast aluminum corner supports for superior performance under load
- Corner blocks can be installed onto the base of the frame independent of the cover plates, enabling the cover plates to be attached after integration and just prior to shipment
- Stackable up to 400mm in height using Plinth Base Stacking Kit (not included)
- 100 mm or 200 mm options
- To maintain a NEMA Type 12 environmental rating, gland plate must also be used in the base of the enclosure
- Installation hardware included
PRODUCT ATTRIBUTES
- Height: 3.94 in / 100 mm
- Width: 31.46 in / 799 mm
- Depth: 18.27 in / 464 mm
- Material: Mild Steel
- Finish: Powder Coated
- Color: Jet Black
- Color Code: RAL 9005
- Thickness: 16 ga / 1.52 mm
- Type: 100mm
- Fits Frame: 800x500 mm
- Weight: 14 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
ProLine G2 Plinth Bases install under an enclosure to provide space for cables to enter from below.
BULLETIN NUMBER
P40
