Description

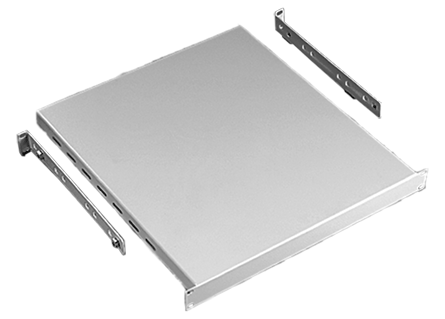

Rack-Mount Shelf Vented 1000mm Max Depth, fits 19in Rack, Black, Steel
- The Rack-Mount Adjustable Shelf mounts to the front surface of front and back rack angles
- The adjustable shelf support brackets are clear-plated 12 gauge steel and adjustable to fit multiple-depth enclosures or rack angle placement
- There are both solid and vented models available
- They fit 19- or 23-inch rack spacing and require only 1U of rack space
- Please note the load rating is for 150 lb. (68 kg)
PRODUCT ATTRIBUTES
- Material: Mild Steel
- Finish: Powder Coated
- Color: Jet Black
- Size: 19 in.
- Type: Vented
- Dimensions: 27.56 x 17.32 in / 700 x 440 mm
- Max Depth: 38.58 in / 980 mm
- Fits Enclosure Depth Up To: 39.37 in / 1000 mm
- Color Code: RAL 9005
- Thickness: 14 ga / 1.9 mm
- Weight: 13.5 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
The Rack-Mount Adjustable Shelf mounts to the front surface of front and back rack angles. The adjustable shelf support brackets are clear-plated 12 gauge steel and adjustable to fit multiple-depth enclosures or rack angle placement. THere are both solid and vented models available. They fit 19- or 23-inch rack spacing and require only 1U of rack space. Please note the load rating is for 150 lb. (68 kg).
BULLETIN NUMBER
DACCY
