Description

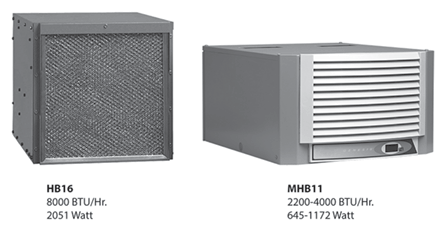

Genesis Top-Mount Indoor, MHB11 2200BTU 460V 1PH, Gray, Steel
- R134a and R407c refrigerant
- Models for 115, 230 and 460 single-phase VAC power input
- Operating temperature range from 50 F/10 C to 125 F/52 C
- Reliable mechanical thermostat located behind the filter of the unit
- Robust reciprocating compressor
- Every unit functionally tested before shipping
- Mounting hardware, gaskets and user manual furnished with the unit
PRODUCT ATTRIBUTES
- Height: 10.25 in / 260 mm
- Width: 17 in / 432 mm
- Depth: 21.08 in / 535 mm
- Material: Mild Steel
- Nominal Voltage: 460 V
- Number of Phases: 1
- Nominal Capacity Watts: 645 W
- Nominal Capacity Btu/h: 2200 Btu/h
- Protection Rating: NEMA Type 12
- Operating Temperature: 50 – 125 °F / 10 – 52 °C
- Max Current: 2.5 A
- Remote Access Control: No
- Finish: Powder Coated
- Color: Traffic Gray
- Color Code: RAL 7042
- Thickness: 18 ga / 1.21 mm
- Weight: 102 lb
DRAWINGS AND DOCUMENT DOWNLOADS
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
Genesis Top-Mount Indoor Air Conditioners are designed for mounting on top of enclosures. The exterior shrouds are made of low-carbon steel and few visible fasteners to survive rugged factory environments. They include a cleanable, reusable aluminum mesh filter which protects the coils for maximum cooling performance. Standard indoor air conditioners include the electro-mechanical thermostat, surge suppressor and condensate management system on MHB11 models.
BULLETIN NUMBER
MCL
INDUSTRY STANDARDS
UL/cUL Listed; Type 12; File No. SA6453
UR/cUR Recognized
Maintains U/cUL Type 12 rating when properly installed on a UL/cUL Type 12 enclosure.
UR/cUR Recognized on select models, reference performance data tables.
CE
EAC
