Product Overview
InLine Hinged Window Cover Type 4X, 200x600x150mm, Brushed, Stainless 316
- Seams continuously welded and ground smooth
- External formed body flange trough
- Large perimeter body opening
- Fastening holes in back of body for direct mounting or optional external mounting brackets
- Seamless foam-in-place gasket
- M6 bonding provision on cover, M6 ground stud in body
- Furnished hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes
PRODUCT ATTRIBUTES
- Height: 7.87 in / 200 mm
- Width: 23.62 in / 600 mm
- Depth: 5.91 in / 150 mm
- Protection Rating: NEMA Type 12; NEMA Type 4; NEMA Type 4X; IP66
- Material: Stainless Steel 316L
- Finish: Brushed #4
- Color: Unpainted
- Body Thickness: 14 ga / 1.98 mm
- Door Thickness: 16 ga / 1.59 mm
- Panel Size: 7.13 x 22.87 in / 181 x 581 mm
- Window Size: 115 x 549 mm / 4.53 x 21.61 in
- Conductive Panel: LP2060G
- Steel Panel: LP2060
- Mounting: 7.15 x 21.08 in / 182 x 535 mm
- Stainless Steel Type: 316L
- Weight: 16 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS

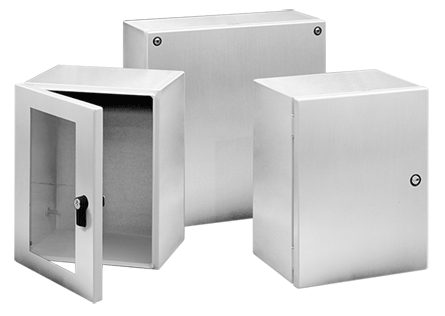

Aesthetic styling, flush latches and an attractive, stroked finish make InLine Enclosures an excellent choice when style and functionality are important. InLine Enclosures have an outward formed body flange to prevent contaminants from entering the enclosure and are available in three cover styles: hinged window door, hinged solid door and solid screw cover.
Purchase panels separately.
