Product Overview
InLine Enclosure with Window Type 4, 250x200x150mm, Light Gray, Mild Steel
- Metric dimensions
- 16 gauge steel
- Seams continuously welded and ground smooth
- External formed body flange channels away liquids
- Large perimeter body opening
- Mounting holes in back of body for direct mounting or optional external mounting brackets
- Seamless foam-in-place gasket
- Grounding stud on the body
- Bonding provision on the door
- Hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes
- Installation instructions
PRODUCT ATTRIBUTES
- Height: 9.84 in / 0 mm
- Width: 7.87 in / 200 mm
- Depth: 5.91 in / 150 mm
- Protection Rating: NEMA Type 12; NEMA Type 4; IP55
- Material: Mild Steel
- Finish: Powder Coated
- Color: Light Gray
- Color Code: RAL 7035
- Thickness: 16 ga / 1.52 mm
- Window Size: 199 x 115 mm / 7.83 x 4.24 in
- Panel: LP2520
- Conductive Panel: LP2520G
- Panel Size: 9.09 x 7.13 in / 231 x 181 mm
- Mounting: 9.12 x 5.33 in / 232 x 135 mm
- Weight: 6.5 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS

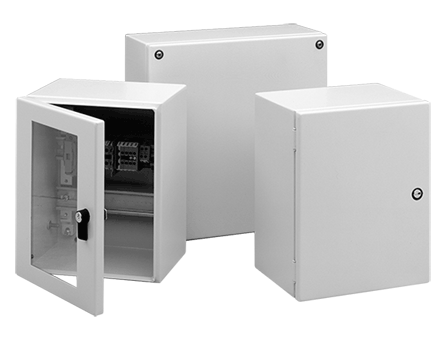

Aesthetic styling, with an attractive, durable light-gray finish, makes InLine Enclosures an excellent choice when style and functionality are important. InLine Enclosures have an outward formed flange to prevent contaminants from entering the enclosure and are available in three versions: window door, hinged solid door and solid screw cover.
BULLETIN NUMBER
A54
Other Information
Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
