Description

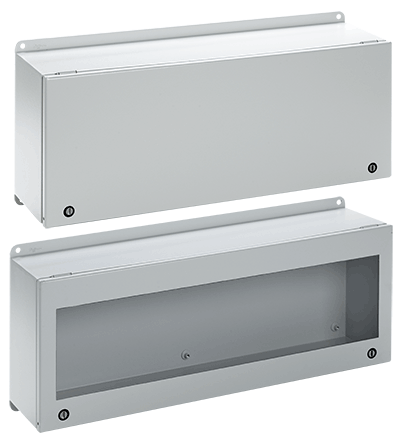

InLine Landscape Enclosure Window Type 4 12, 230x930x155mm, Light Gray, Mild Steel
- Metric dimensions
- Seams continuously welded and ground smooth
- External formed body flange channels away liquids
- Large perimeter body opening
- External welded-on mounting brackets for easy installation
- Bonding provision on cover and door
- Hardware kit includes panel mounting screws and grounding hardware
- Removable hinged door
- Self-grounding, slotted quarter-turn latches
- Door opens 180 degrees
- Window door models include flush-mounted 4.8-mm (3/16-in.) clear polycarbonate window
- Seamless foam-in-place gasket
PRODUCT ATTRIBUTES
- Height: 9.06 in / 0 mm
- Finish: Powder Coated
- Width: 36.61 in / 930 mm
- Color: Light Gray
- Depth: 6.1 in / 155 mm
- Protection Rating: NEMA Type 12; NEMA Type 4; NEMA Type 3R; IP66
- Material: Mild Steel
- Mounting Studs: 881 mm / 34.67 in
- Clear Space Above Panel: 140 mm / 5.51 in
- Cover Style: Window
- Color Code: RAL 7035
- Thickness: 16 ga / 1.5 mm
- Weight: 24.4 lb
- Window Size: 5.49 x 34.42 in / 139 x 874 mm
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
When applications require mounting electrical components the full width of an enclosure, the landscape orientation of this aesthetic InLine Enclosure makes it possible. Full-width mounting brackets can be drilled anywhere along their length, providing maximum mounting flexibility.
BULLETIN NUMBER
A54
