Description

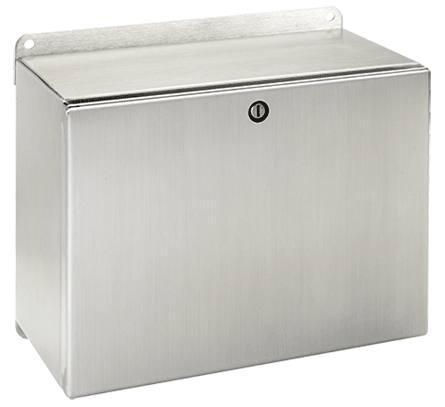

InLine Landscape Enclousre Window Door Type 4X, 230x600x155mm, Brushed, SS304
- Full width bracket for mounting flexibility
- Seams continuously welded and ground smooth
- External formed body flange trough
- Large perimeter body opening
- Mounting brackets are spot-welded to top and bottom of enclosure
- Mounting brackets have predrilled mounting holes; customer-specific location holes can be drilled for mounting flexibility
- Seamless foam-in-place gasket
- M6 ground stud with base flange on body; M6 bonding provision with base flange on door
- Furnished hardware kit includes panel mounting screws and grounding hardware
- Hinged door with removable hinge pins and self-grounding quarter-turn latch system with double seal
- Door opens 180 degrees
- Window door models include 3/16-in. (4.8-mm) clear polycarbonate window mounted flush with door surface
PRODUCT ATTRIBUTES
- Height: 9.06 in / 0 mm
- Width: 23.62 in / 600 mm
- Depth: 6.1 in / 155 mm
- Protection Rating: NEMA Type 12; NEMA Type 4; NEMA Type 4X; IP66
- Material: Stainless Steel 304
- Panel: LP2360
- Clear Space Above Panel: 140 mm / 5.51 in
- DIN Rail or Panel Mounting Bracket: LMK23
- Window Size: 549 mm / 21.62 in
- Mounting Holes: 571 mm / 22.5 in
- Mounting Studs: 556 mm / 21.88 in
- Cover Style: Window Cover
- Conductive Panel: LP2360G
- DIN Rail: LDR3P60
- Body Thickness: 14 ga / 1.98 mm
- Color: Unpainted
- Door Thickness: 16 ga / 1.59 mm
- Finish: Brushed #4
- Weight: 18.5 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
When applications require mounting electrical components the full width of the enclosure, the landscape orientation of this aesthetic InLine Enclosure makes this possible. The full-width mounting brackets can be drilled anywhere along their length, providing maximum mounting flexibility.
BULLETIN NUMBER
A54S
