Product Overview

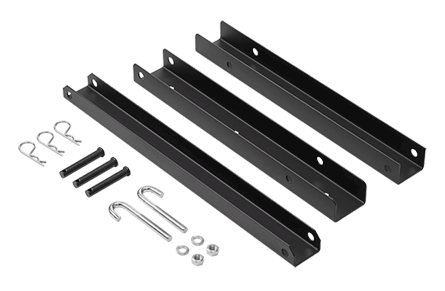

Modular Triangle Support Bracket Kit, fits 24.00, Black, Steel
- The Cable Runway Modular Triangle Support Bracket Kit secures and supports ladder rack to a wall
- The design features three bracket support arms that easily attach to each other with quick-release pins and fold down to ease assembly
- Each model accommodates two ladder rack widths
- The kit includes one modular bracket assembly, three quick-release pins and two J-bolts with washers and nuts
- The bracket is made of painted steel with plated hardware
PRODUCT ATTRIBUTES
- Material: Mild Steel
- Fits Cable Runway: 18, 24 in
- Color: Jet Black
- Color Code: RAL 9005
- Finish: Powder Coated
- Thickness: 14 ga / 1.9 mm
- Weight: 7.5 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
The Cable Runway Modular Triangle Support Bracket Kit secures and supports ladder rack to a wall. The design features three bracket support arms that easily attach to each other with quick-release pins and fold down to ease assembly. Each model accommodates two ladder rack widths. The kit includes one modular bracket assembly, three quick-release pins and two J-bolts with washers and nuts. The bracket is made of painted steel with plated hardware.
