Description
APPLICATION:

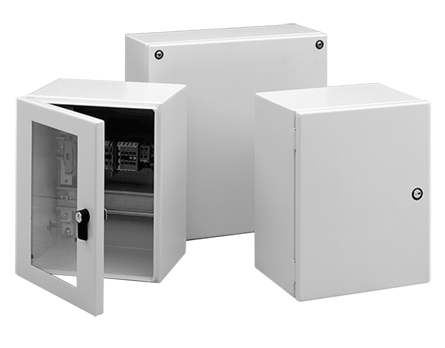

Aesthetic styling, with an attractive, durable light-gray finish, makes INLINE Enclosures an excellent choice when style and functionality are important. INLINE Enclosures have an outward formed flange to prevent contaminants from entering the enclosure and are available in three versions: window door, hinged solid door and solid screw cover.
SPECIFICATIONS:
- Metric dimensions
- 1.4-mm (16 gauge) steel
- Seams continuously welded and ground smooth
- External formed body flange channels away liquids
- Large perimeter body opening
- Mounting holes in back of body for direct mounting or optional external mounting brackets
- Seamless foam-in-place gasket
- Grounding stud on the body
- Bonding provision on the door
- Hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes
- Installation instructions INLINE Screw-Cover Enclosures
- Captivated cover screws with sealing bushings INLINE Hinged-Door and Window-Door Enclosures
- Door opens 180 degrees
- Removable hinged door
- Self-grounding, slotted quarter-turn latch
- Flush-mounted 4.8-mm (3/16-in.) clear polycarbonate window
FINISH:
- RAL 7035 textured light-gray polyester powder paint inside and out
ACCESSORIES:
- DIN Rail or Panel-Mounting Brackets
- DIN3 Category Rails
- Lock Inserts
- Mounting Bracket Kit Panels
- Wing Knob Latch
- Grounding Kit
