Description

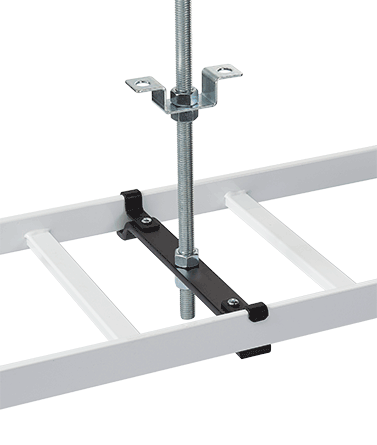

Runway Center Support Kit, fits 12.00, Black, Steel
- The Cable Runway Center Support Kit is a threaded rod and bracket that supports the center of ladder rack from a ceiling
- The kit includes a heavy-duty ladder rack cross member, two mounting brackets, two #12-24 screws, a 5/8-inch threaded rod, a protected sleeve and four 5/8-inch nuts
- Supports should be used at least every 5 feet (1.5 m)
PRODUCT ATTRIBUTES
- Material: Mild Steel
- Fits Cable Runway: 12 in
- Color: Jet Black
- Color Code: RAL 9005
- Finish: Powder Coated
- Thickness: 0.375 in / 9.5 mm
- Weight: 7.84 lb
DRAWINGS AND DOCUMENT DOWNLOADS
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
The Cable Runway Center Support Kit is a threaded rod and bracket that supports the center of ladder rack from a ceiling. The kit includes a heavy-duty ladder rack cross member, two mounting brackets, two #12-24 screws, a 5/8-inch threaded rod, a protected sleeve and four 5/8-inch nuts. Supports should be used at least every 5 feet (1.5 m).
BULLETIN NUMBER
DCR
