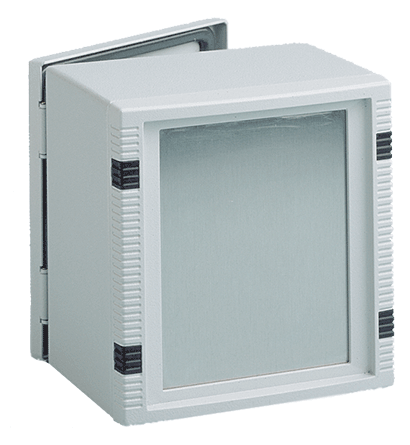

Hoffman LBF1616 Fixed HMI Bezel

Hoffman LBF1616 Fixed HMI Bezel

$266.00
SKU:
LBF1616
Shipping:
Calculated at Checkout
Product Type:
HMI Bezels
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Manufacturer Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Fixed HMI Bezel for InLine HMI, fits 166x160mm, Lt Gray, Zinc

  • Includes gasket and mounting hardware.
  • Purchase Front Plate separately

PRODUCT ATTRIBUTES

  • Height: 6.54 in / 166 mm
  • Width: 6.3 in / 160 mm
  • Depth: 0.67 in / 17 mm
  • Material: Zinc
  • Window Size: 136 x 109 mm / 5.35 x 4.30 in
  • Accepts Front Plate: LFP1616
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Powder Coated
  • Thickness: 0.03 in / 0.8 mm
  • Weight: 1.4 lb

DRAWINGS AND DOCUMENT DOWNLOADS

Approval Agency Certificate

ADDITIONAL PRODUCT DETAILS

Aesthetic die-cast bezel frame accepts front plate or plates with HMI cutout. Furnished frame caps conceal mounting screws.

BULLETIN NUMBER

C3
