Description

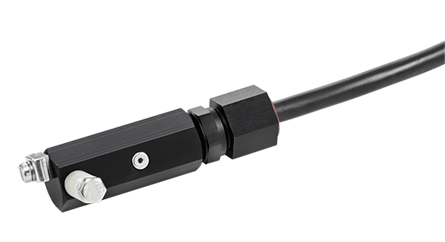

Hazardous Location Heater Thermostat 20C SetPt, 1.1X.9X4.3, Black, Aluminum
- 50W, 80W, 200W, 300W, 400W and 600W models available
- Provides freeze protection down to -76 F / -60 C
- Conductive and Convection heating types available
- 50W and 80W models can be mounted directly to manifolds, measuring or analyzing instruments, control valves, and similar equipment
- 200W, 300W, 400W, 600W models are finned heaters that heat the area by transferring the heat from the heater to surrounding air, creating a convection current
- Two thermostat options available with a 50 F / 10 C or 68 F / 20 C set point
PRODUCT ATTRIBUTES
- Height: 1.1 in / 28 mm
- Width: 0.9 in / 23 mm
- Depth: 4.3 in / 109 mm
- Material: Aluminum
- Finish: Anodized
- Color: Black
- Weight: 0.6 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
Designed for hazardous locations where electronic components require protection from cold freezing temperatures, condensation and corrosion.
BULLETIN NUMBER
D85H
