Product Overview

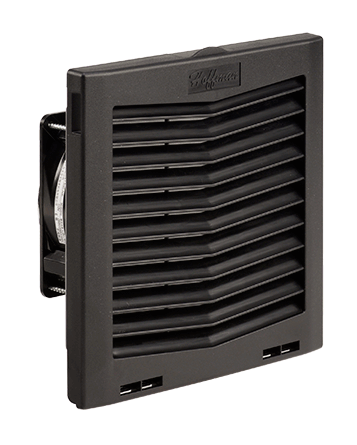

HF10 Side-Mount Filter Fan, 24V 159CFM, Black

Click-Fit design quickly installs into enclosure wall; no tools or screws required
Opens with the flick of a finger for easy filter replacement
Enclosure side wall mounting
Reverse airflow option on HF13 models available to push/pull air through higher static pressure
Standard rope gasket provides proper seal to the enclosure
Similar cut-out sizes as other filter fan manufacturers
Terminal block connections
Optional thermostat available to save energy and extend service life
Hinged grille remains attached after opening
Size rage from 4 inch (102 mm) to 13 inch (325 mm)
Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.)
Service life hours from 40,000 to 100,000 hours
Operating temperature range of -4 F/-20 C to 149 F/65 C

PRODUCT ATTRIBUTES

Height: 10.13 in / 257 mm
Width: 10.14 in / 258 mm
Depth: 5.18 in / 132 mm
Airflow: 159 ft³/min / 270 m³/h
Nominal Voltage: 24 V
Voltage DC: 24 V
Max Current: 1.2 A
Operating Temperature: 14 – 131 °F / −10 to 55 °C
Material: Plastic
Color: Graphite Black
Color Code: RAL 9011
Finish: Smooth Matte
Weight: 4.2 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

HF Side-Mount Filter Fans quickly install into enclosure with a click-fit design; no tools or screws required. Grilles open with the flick of a finger for easy filter replacement.

BULLETIN NUMBER

MCLF

Other Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
