Product Overview

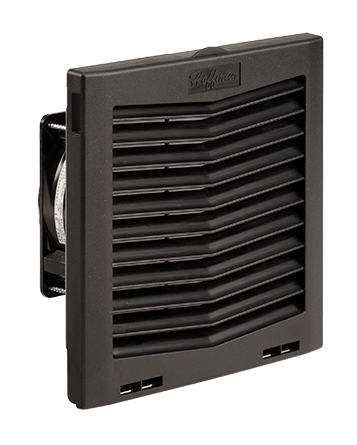

HF10 Side-Mount Filter Fan, 115V 159CFM, Black
- Click-Fit design quickly installs into enclosure wall; no tools or screws required
- Opens with the flick of a finger for easy filter replacement
- Enclosure side wall mounting
- Reverse airflow option on HF13 models available to push/pull air through higher static pressure
- Standard rope gasket provides proper seal to the enclosure
- Similar cut-out sizes as other filter fan manufacturers
- Terminal block connections
- Optional thermostat available to save energy and extend service life
- Hinged grille remains attached after opening
- Size rage from 4 inch (102 mm) to 13 inch (325 mm)
- Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.)
- Service life hours from 40,000 to 100,000 hours
- Operating temperature range fo -4 F/-20 C to 149 F/65 C
PRODUCT ATTRIBUTES
- Height: 10.13 in / 257 mm
- Width: 10.14 in / 258 mm
- Depth: 4.68 in / 119 mm
- Airflow: 159 ft³/min / 270 m³/h
- Nominal Voltage: 115 V
- Voltage AC: 100 V
- Max Current: 0.38 A
- Operating Temperature: 14 – 131 °F / −10 to 55 °C
- Material: Plastic
- Color: Graphite Black
- Color Code: RAL 9011
- Finish: Smooth Matte
- Weight: 4.3 lb
DRAWINGS AND DOCUMENT DOWNLOADS
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
HF Side-Mount Filter Fans quickly install into enclosure with a click-fit design; no tools or screws required. Grilles open with the flick of a finger for easy filter replacement.
BULLETIN NUMBER
MCLF
INDUSTRY STANDARDS
UL/cUL Listed; File No. E482010
CE
EAC
Type 12 standard on all models
IP54 standard option on all models except HF13
IP55 standard option on all models except HF04
Other Information
Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
