Description

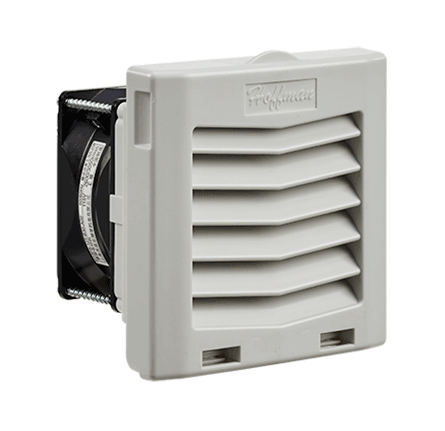

HF04 Side-Mount Filter Fan, 115V, 21 CFM, Lt Gray
- Click-Fit design quickly installs into enclosure wall; no tools or screws required
- Opens with the flick of a finger for easy filter replacement
- Enclosure side wall mounting
- Reverse airflow option on HF13 models available to push/pull air through higher static pressure
- Standard rope gasket provides proper seal to the enclosure
- Similar cut-out sizes as other filter fan manufacturers
- Terminal block connections
- Optional thermostat available to save energy and extend service life
- Hinged grille remains attached after opening
- Size rage from 4 inch (102 mm) to 13 inch (325 mm)
- Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.)
- Service life hours from 40,000 to 100,000 hours
- Operating temperature range fo -4 F/-20 C to 149 F/65 C
PRODUCT ATTRIBUTES
- Height: 4.42 in / 112.268 mm
- Width: 4.44 in / 112.776 mm
- Depth: 3.65 in / 92.71 mm
- Airflow: 21 ft³/min / 36 m³/h
- Nominal Voltage: 115 V
- Voltage AC: 100 V
- Max Current: 0.1 A
- Operating Temperature: 14 – 131 °F / −10 to 55 °C
- Material: Plastic
- Color: Light Gray
- Color Code: RAL 7035
- Finish: Smooth Matte
- Weight: 1.5 lb
DRAWINGS AND DOCUMENT DOWNLOADS
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
HF Side-Mount Filter Fans quickly install into enclosure with a click-fit design; no tools or screws required. Grilles open with the flick of a finger for easy filter replacement.
BULLETIN NUMBER
MCLF
INDUSTRY STANDARDS
UL/cUL Listed; File No. E482010
CE
EAC
Type 12 standard on all models
IP54 standard option on all models except HF13
IP55 standard option on all models except HF04
