Product Overview

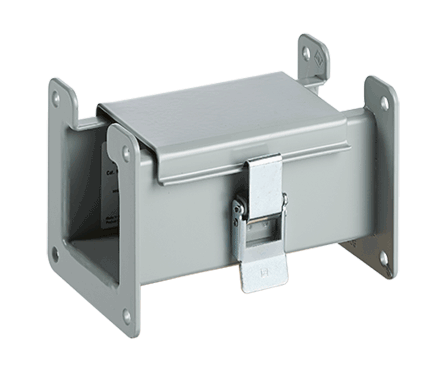

Tee Fitting Lay-in Hinged Cover Outside Top Opening, 8.00x8.00, Gray, Steel

Lay-in Hinged Cover Tee Fitting with Outside Top Opening is used when the covers of two branches are on the same side and the third is on a different side

PRODUCT ATTRIBUTES

Type: Tee
Height: 8 in / 203 mm
Width: 8 in / 203 mm
Protection Rating: NEMA Type 12; IP54
Material: Mild Steel
Sealing Plate Type: Flat
Sealing Plate Quantity: 2
Color: Gray
Color Code: ANSI 61
Finish: Galvanized; Powder Coated / Galvanized; Powder Coated
Thickness: 14 ga / 1.9 mm
Weight: 16.5 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

Lay-in Hinged Cover Tee Fitting with Outside Top Opening is used when the covers of two branches are on the same side and the third is on a different side.

Each sealing plate also includes one gasket and one set of screws to join sections.

Certified by Canadian Standards Association.

BULLETIN NUMBER

F10

Other Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.

Product Overview
Other Information

Tee Fitting Lay-in Hinged Cover Outside Top Opening, 8.00x8.00, Gray, Steel

Lay-in Hinged Cover Tee Fitting with Outside Top Opening is used when the covers of two branches are on the same side and the third is on a different side

PRODUCT ATTRIBUTES

Type: Tee
Height: 8 in / 203 mm
Width: 8 in / 203 mm
Protection Rating: NEMA Type 12; IP54
Material: Mild Steel
Sealing Plate Type: Flat
Sealing Plate Quantity: 2
Color: Gray
Color Code: ANSI 61
Finish: Galvanized; Powder Coated / Galvanized; Powder Coated
Thickness: 14 ga / 1.9 mm
Weight: 16.5 lb

DRAWINGS AND DOCUMENT DOWNLOADS

2D DXF

TEE FITTING, OUTSIDE TOP OPENING, LAY-IN HINGED COVER 2D DXF CAD

3D Step

F88LTC 3D STEP CAD

Approval Agency Certificate

CERT-00148

DECLARATION OF COMPLIANCE

Data Sheet

LAY-IN WIREWAY, TYPE 12 SPEC SHEET

Installation Manual / Instruction Sheet

LAY-IN WIREWAY HINGED-COVER INSTRUCTION MANUAL
