Product Overview

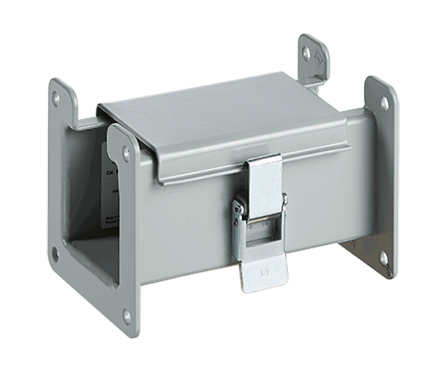

Telescope Fitting Lay-In Hinged Cover, 8.00x8.00, Gray, Steel

Lay-in Hinged Cover Telescope Fitting allows to easily adjust wireway length from 1.00 inch (25 mm) to 7.00 inch (178 mm)
No cutting or welding required

PRODUCT ATTRIBUTES

Type: Telescope Fitting
Height: 8 in / 203 mm
Width: 8 in / 203 mm
Protection Rating: NEMA Type 12; IP54
Material: Mild Steel
Sealing Plate Type: Special
Sealing Plate Quantity: 1
Color: Gray
Color Code: ANSI 61
Finish: Galvanized; Powder Coated / Galvanized; Powder Coated
Thickness: 14 ga / 1.9 mm
Weight: 10.5 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

Lay-in Hinged Cover Telescope Fitting allows to easily adjust wireway length from 1.00 inch (25 mm) to 7.00 inch (178 mm). No cutting or welding required.

Each sealing plate also includes one gasket and one set of screws to join sections.

BULLETIN NUMBER

F10

Other Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.

Product Overview
Other Information

Telescope Fitting Lay-In Hinged Cover, 8.00x8.00, Gray, Steel

Lay-in Hinged Cover Telescope Fitting allows to easily adjust wireway length from 1.00 inch (25 mm) to 7.00 inch (178 mm)
No cutting or welding required

PRODUCT ATTRIBUTES

Type: Telescope Fitting
Height: 8 in / 203 mm
Width: 8 in / 203 mm
Protection Rating: NEMA Type 12; IP54
Material: Mild Steel
Sealing Plate Type: Special
Sealing Plate Quantity: 1
Color: Gray
Color Code: ANSI 61
Finish: Galvanized; Powder Coated / Galvanized; Powder Coated
Thickness: 14 ga / 1.9 mm
Weight: 10.5 lb

DRAWINGS AND DOCUMENT DOWNLOADS

2D DXF

TELESCOPE FITTING, LAY-IN HINGED COVER 2D DXF CAD

3D Step

F88LA 3D STEP CAD

Approval Agency Certificate

CERT-00148

DECLARATION OF COMPLIANCE

Data Sheet

LAY-IN WIREWAY, TYPE 12 SPEC SHEET

Installation Manual / Instruction Sheet

LAY-IN WIREWAY HINGED-COVER INSTRUCTION MANUAL

ADDITIONAL PRODUCT DETAILS

Lay-in Hinged Cover Telescope Fitting allows to easily adjust wireway length from 1.00 inch (25 mm) to 7.00 inch (178 mm). No cutting or welding required.

Each sealing plate also includes one gasket and one set of screws to join sections.

BULLETIN NUMBER

F10
