Description

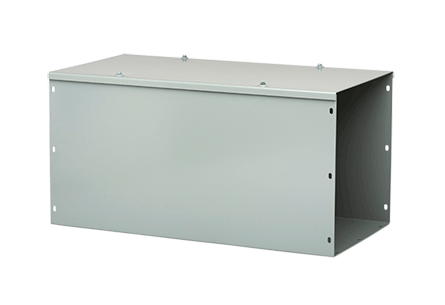

Straight Section Lay-in Hinged-Cover Type 1 no KOs, 8x8x12, Gray, Steel
- Lay-in Hinged-Cover Type 1 Straight Sections are used for enclosing wire and cable in wireway runs
- Sections are completely open on one side so wires and cables can be laid in along wireway run
- No pulling through of wires or cables prevents damage to insulation that often occurs in a pull-through wiring system
- Sections are available in lengths from 12 inch to 120 inch, with or without knockouts
- NOTE: F1212GXX catalog numbers without "H" are not hinged. F1212GXXH catalog numbers are hinged
PRODUCT ATTRIBUTES
- Type: Straight Section
- Height: 8 in / 203 mm
- Width: 8 in / 203 mm
- Depth: 12 in / 305 mm
- Protection Rating: NEMA Type 1; IP30
- Material: Mild Steel
- Finish: Powder Coated
- Color: Gray
- Color Code: ANSI 61
- Thickness: 14 ga / 1.9 mm
- Style: Liftoff Cover no Knockouts
- Weight: 8.8 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
ADDITIONAL PRODUCT DETAILS
Lay-in Hinged-Cover Type 1 Straight Sections are used for enclosing wire and cable in wireway runs. Sections are completely open on one side so wires and cables can be laid in along wireway run. No pulling through of wires or cables prevents damage to insulation that often occurs in a pull-through wiring system. Sections are available in lengths from 12 inch to 120 inch, with or without knockouts.
F1212GXX catalog numbers without "H" are not hinged. F1212GXXH catalog numbers are hinged.
BULLETIN NUMBER
F40
