Product Overview

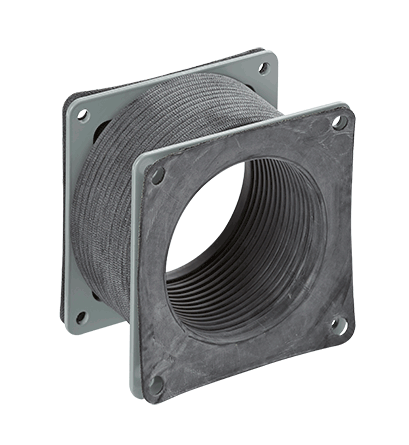

Flexible Fitting Feed-Through, 6.00x6.00, Textured, Hypalon Rubber
- Feed-Through Flexible Fittings are used for isolating a wireway run from shock and vibration or compensating for misalignment
- Used where an odd angle is required (but not to exceed 90 degrees)
- Permits movement of a machine or control station connected to a wireway run
- Hypalon bellow with steel flanges
- Connects to other wireway sections and fittings and protects wires and cables against dust in a broad range of industrial applications
PRODUCT ATTRIBUTES
- Type: Flexible Fitting
- Height: 6 in / 152 mm
- Width: 6 in / 152 mm
- Protection Rating: NEMA Type 12; IP54
- Material: Hypalon Rubber Bellow
- Finish: Painted Steel
- Color: Unpainted
- Weight: 3.8 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Case Study
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
Feed-Through Flexible Fittings are used for isolating a wireway run from shock and vibration or compensating for misalignment. Used where an odd angle is required (but not to exceed 90 degrees). Permits movement of a machine or control station connected to a wireway run. Hypalon bellow with steel flanges. Connects to other wireway sections and fittings and protects wires and cables against dust in a broad range of industrial applications.
All dimensions are to outside surfaces. Allow .12 in. (3 mm) additional for gasket at joints.
