Description

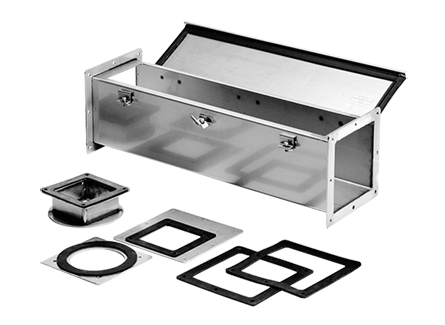

Straight Section Feed-Through Type 4X, 6.00x6.00x48.00, Brushed, SS304
- Feed-Through Stainless Steel Hinged-Cover, Type 4X Straight Sections are used for enclosing wire and cable in wireway runs
- Its water-proof and stainless steel features makes it suitable for frequently hosed down, very wet or highly corrosive applications
- The traditional closed-loop design has an opening on one side for easy access to wires and cables
- Sections are available in lengths from 12 inch to 120 inch
PRODUCT ATTRIBUTES
- Type: Straight Section
- Height: 6 in / 152 mm
- Width: 6 in / 152 mm
- Depth: 48 in / 1219 mm
- Protection Rating: NEMA Type 12; NEMA Type 4; NEMA Type 4X; IP66
- Material: Stainless Steel 304
- Color: Unpainted
- Finish: No. 2B
- Thickness: 16 ga / 1.59 mm
- Weight: 25 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
Feed-Through Stainless Steel Hinged-Cover, Type 4X Straight Sections are used for enclosing wire and cable in wireway runs. Its water-proof and stainless steel features makes it suitable for frequently hosed down, very wet or highly corrosive applications. The traditional closed-loop design has an opening on one side for easy access to wires and cables. Sections are available in lengths from 12 inch to 120 inch.
All dimensions are to outside surfaces. Allow .12 in. (3 mm) additional for gasket at joints.
BULLETIN NUMBER
F22
INDUSTRY STANDARDS
Certified by Canadian Standards Association.
