Product Overview

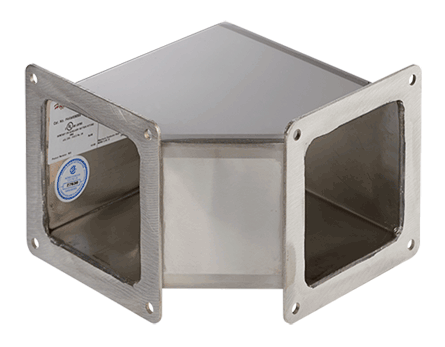

Elbow 90-Degree Feed-Through Wireway, 4.00x4.00, Brushed, Stainless Steel 304
- Feed-Through Stainless Steel 90-Degree Elbows are for continuous runs with 90-degree turns
- Connects to other wireway sections and fittings and protects wires and cables in frequently hosed down, very wet or highly corrosive applications
PRODUCT ATTRIBUTES
- Type: Elbow
- Height: 4 in / 102 mm
- Width: 4 in / 102 mm
- Protection Rating: NEMA Type 12; NEMA Type 4; NEMA Type 4X; IP66
- Material: Stainless Steel 304
- Color: Unpainted
- Finish: No. 2B
- Thickness: 16 ga / 1.59 mm
- Weight: 3.9 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
Feed-Through Stainless Steel 90-Degree Elbows are for continuous runs with 90-degree turns. Connects to other wireway sections and fittings and protects wires and cables in frequently hosed down, very wet or highly corrosive applications.
All dimensions are to outside surfaces. Allow .12 in. (3 mm) additional for gasket at joints. Dimension J is from intersection of center lines.
