Product Overview

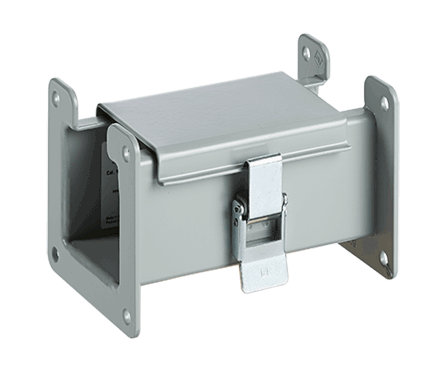

Straight Section Lay-in Hinged Cover Type 12, 4.00x4.00x6.00, Gray, Steel

Lay-in NEMA Type 12 Wireway fittings are used primarily in industrial applications to protect wiring against exposure to oil and other contaminants
This gasketed wireway features quick-release latches for easy access and an opening on one side so wires and cables can be laid in along the entire run without pulling

PRODUCT ATTRIBUTES

Type: Straight Section
Height: 4 in / 102 mm
Width: 4 in / 102 mm
Depth: 6 in / 152 mm
Protection Rating: NEMA Type 12; IP54
Material: Mild Steel
Sealing Plate Type: Flat
Sealing Plate Quantity: 1
Color: Gray
Color Code: ANSI 61
Finish: Galvanized; Powder Coated / Galvanized; Powder Coated
Thickness: 14 ga / 1.9 mm
Weight: 3.6 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

Lay-in NEMA Type 12 Wireway fittings are used primarily in industrial applications to protect wiring against exposure to oil and other contaminants. This gasketed wireway features quick-release latches for easy access and an opening on one side so wires and cables can be laid in along the entire run without pulling.

Each sealing plate also includes one gasket and one set of screws to join sections.

Certified by Canadian Standards Association.

BULLETIN NUMBER

F10

Other Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
