Product Overview

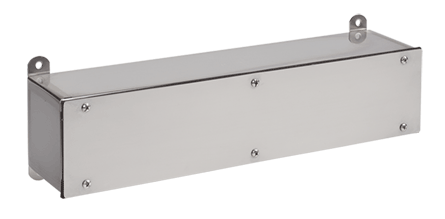

Screw Cover Wiring Trough NEMA Type 4X, 4.00x4.00x12.00, Brushed, SS304
- Seams continuously welded and ground smooth
- Oil-resistant gasket and adhesive
- Captivated stainless steel cover screw threaded into sealed walls
- No holes or knockouts
PRODUCT ATTRIBUTES
- Type: Trough
- Height: 4 in / 102 mm
- Width: 4 in / 102 mm
- Depth: 12 in / 305 mm
- Protection Rating: NEMA Type 12; NEMA Type 4; NEMA Type 4X; NEMA Type 3R; IP66
- Material: Stainless Steel 304
- Finish: No. 2B
- Color: Unpainted
- Body Thickness: 16 ga / 1.59 mm
- Door Thickness: 12 ga / 2.78 mm
- Cover Screw Quantity: 4
- Weight: 6.2 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
ADDITIONAL PRODUCT DETAILS
Stainless Steel Screw-Cover Wiring Trough, Type 4X is used for protecting wire and cable distribution, junctions and terminations in outdoor or corrosive applications in which frequent access is not needed.
Omit center mounting foot if C is less than 60 in. (1524 mm).
BULLETIN NUMBER
F24
INDUSTRY STANDARDS
UL 870, 50E Listed; Type 12/3R/4/4X; File No. E27524; cUL Listed
per CSA C22.2 No. 26 and No. 94.2; Type 3R, 4, 4X, 12
IEC 60529, IP66
Other Information
Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
