Product Overview

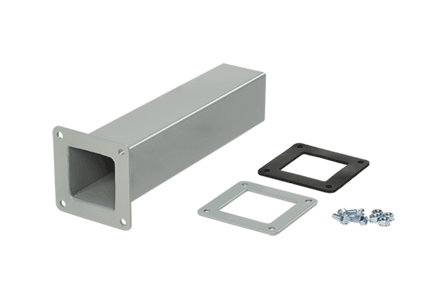

Cutoff Fitting Feed-Through, 2.50x2.50, Gray, Steel

Feed-Through Cut-Off Fittings are used for custom fitting lengths up to 12 inch
Shorten body to desired length and weld on flange
Connects to other wireway sections and fittings and protects wires and cables against dust in a broad range of industrial applications

PRODUCT ATTRIBUTES

Type: Cut-Off Fitting
Height: 2.5 in / 64 mm
Width: 2.5 in / 64 mm
Protection Rating: NEMA Type 12; IP54
Material: Mild Steel
Color: Gray
Color Code: ANSI 61
Finish: Powder Coated
Thickness: 14 ga / 1.9 mm
Weight: 3.52 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

Feed-Through Cut-Off Fittings are used for custom fitting lengths up to 12in. Shorten body to desired length and weld on flange. Connects to other wireway sections and fittings and protects wires and cables against dust in a broad range of industrial applications.

All dimensions are to outside surfaces. Allow .12 in. (3 mm) additional for gasket at joints.

BULLETIN NUMBER

F20

Other Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
