Product Overview

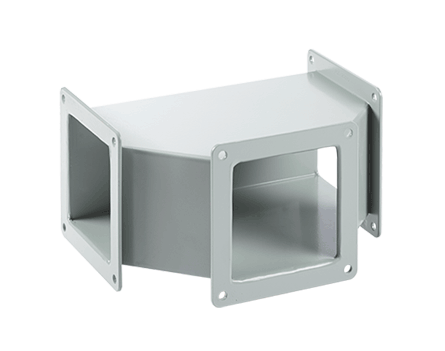

Tee Feed-Through, 2.50x2.50, Gray, Steel

Feed-Through Tees are used for making T-type turns in wireway runs
Connects to other wireway sections and fittings and protects wires and cables against dust in a broad range of industrial applications

PRODUCT ATTRIBUTES

Type: Tee
Height: 2.5 in / 64 mm
Width: 2.5 in / 64 mm
Protection Rating: NEMA Type 12; IP54
Material: Mild Steel
Color: Gray
Color Code: ANSI 61
Finish: Powder Coated
Thickness: 14 ga / 1.9 mm
Weight: 3.7 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

Feed-Through Tees are used for making T-type turns in wireway runs. Connects to other wireway sections and fittings and protects wires and cables against dust in a broad range of industrial applications.

All dimensions are to outside surfaces. Allow .12 in. (3 mm) additional for gasket at joints. Dimension K is from intersection of center lines.

BULLETIN NUMBER

F20
